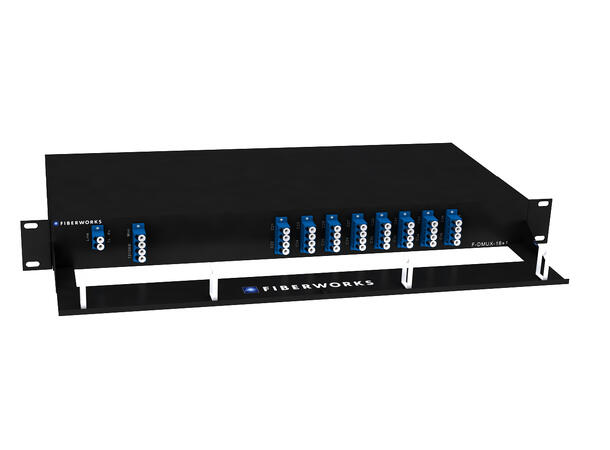

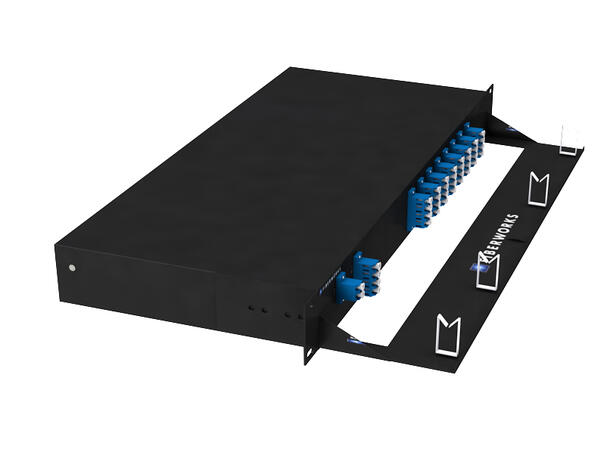

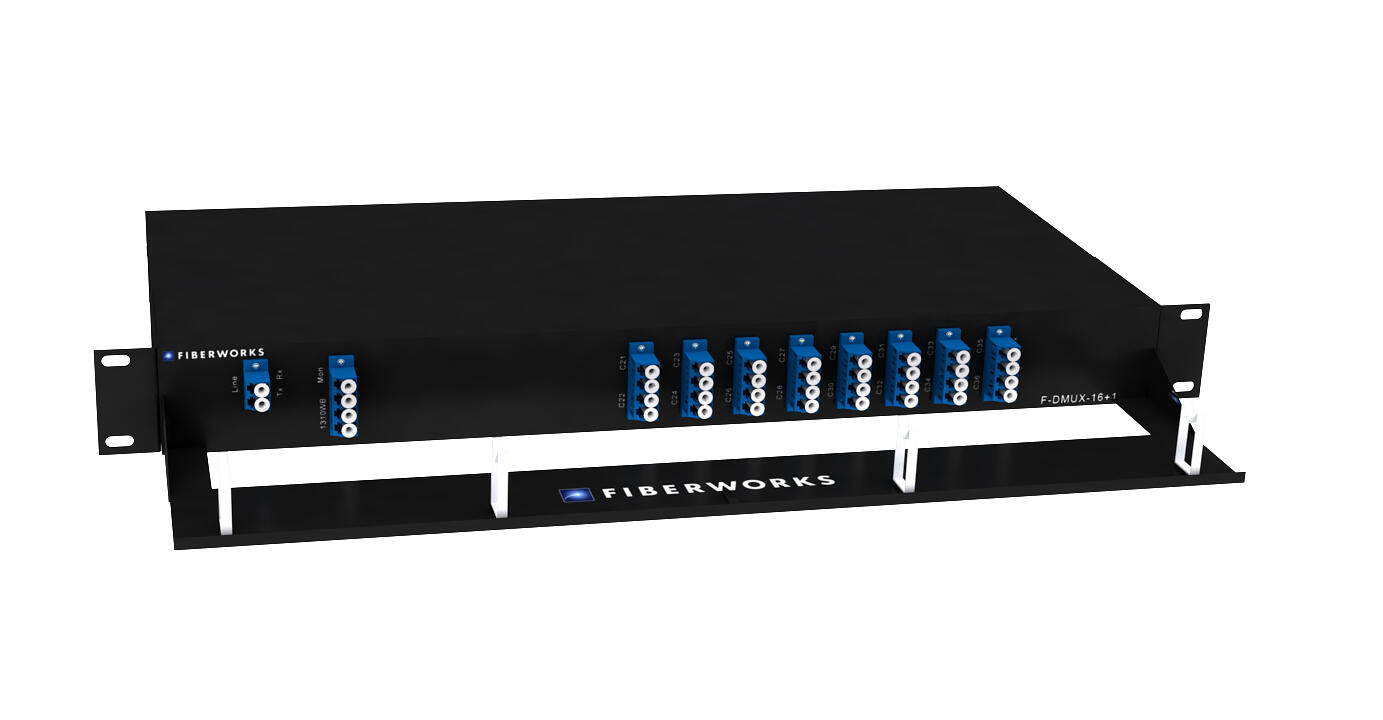

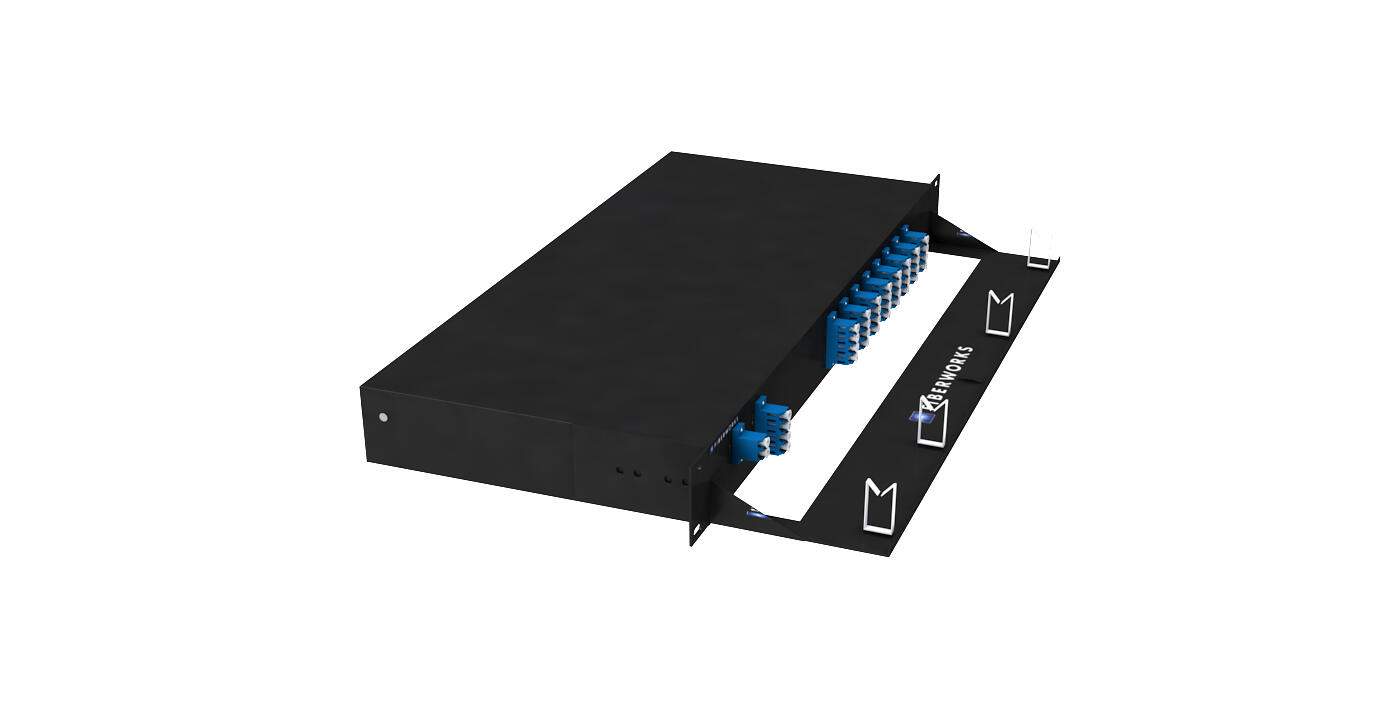

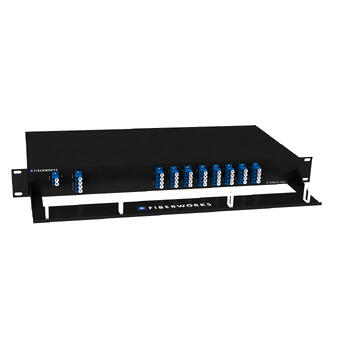

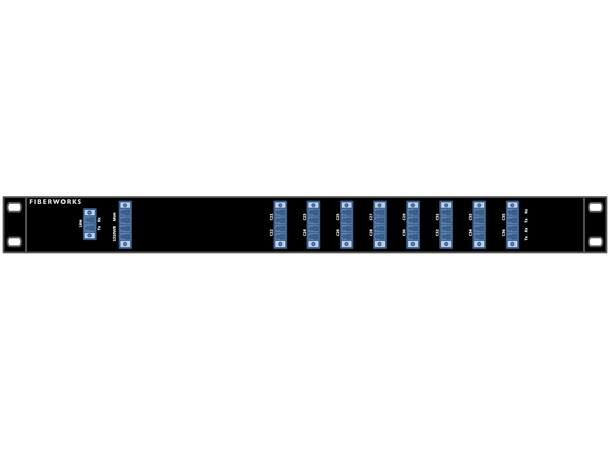

Fiberworks 16+1 ch. DWDM Mux+Demux, Low

ITU ch. 21-36, 100 GHz, Upgrade & Mon.

Product nr: F-DMUX-16+1-2136-MLU
Product
DescriptionTechnical infoAccessoriesAlternatives
Description
FEATURES
- Dense WDM in compliance with ITU-T G.694.1

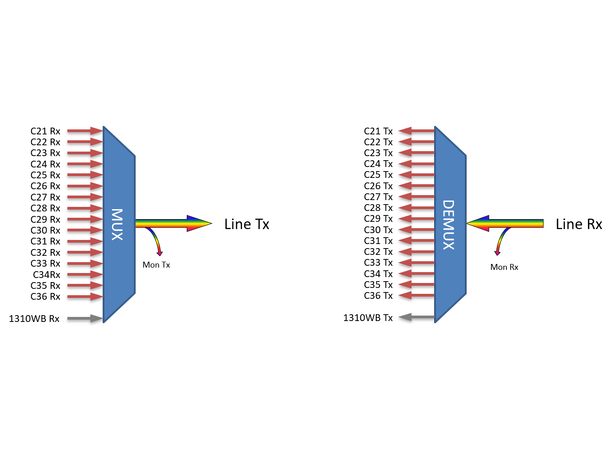

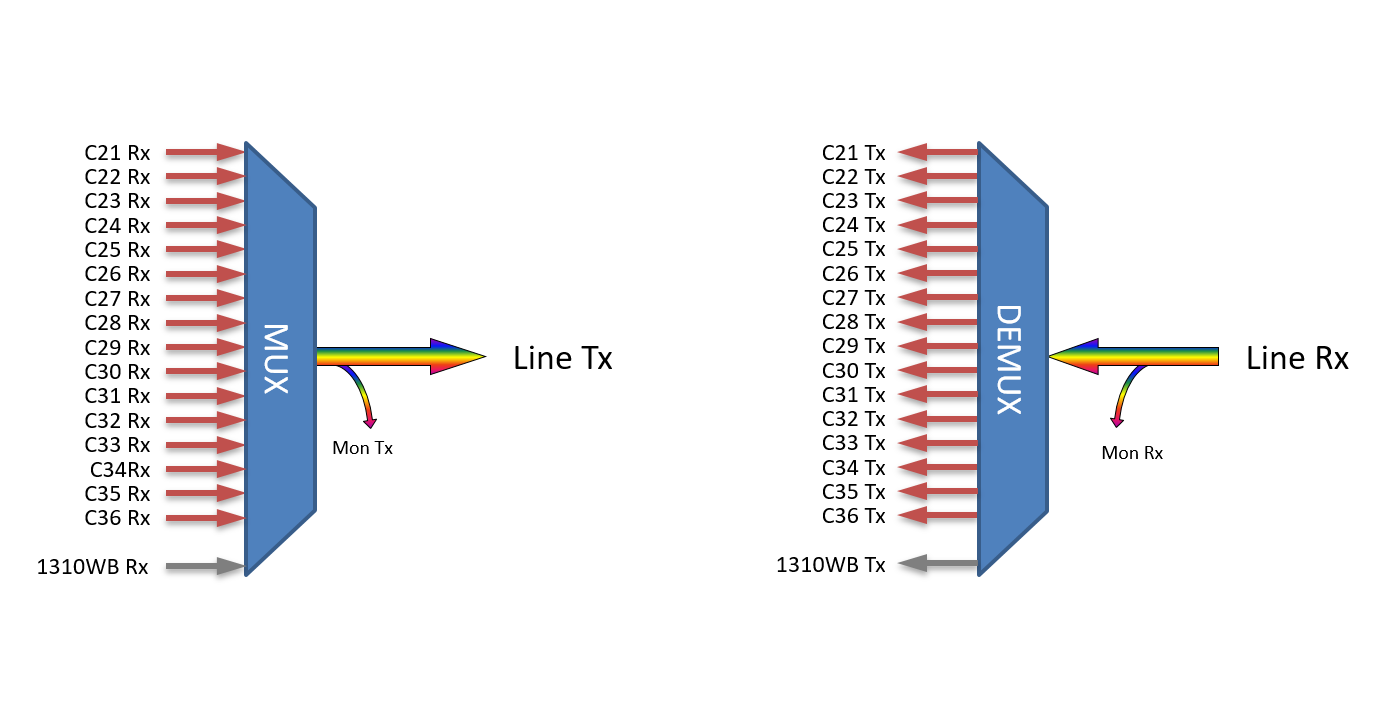

- 16 DWDM channels 21-36 with 100 GHz spacing
- Upgrade port for 16 additional DWDM channels, low band CWDM or 40G/100G ER4 interface
- Two 5% monitor ports for easy troubleshooting
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)

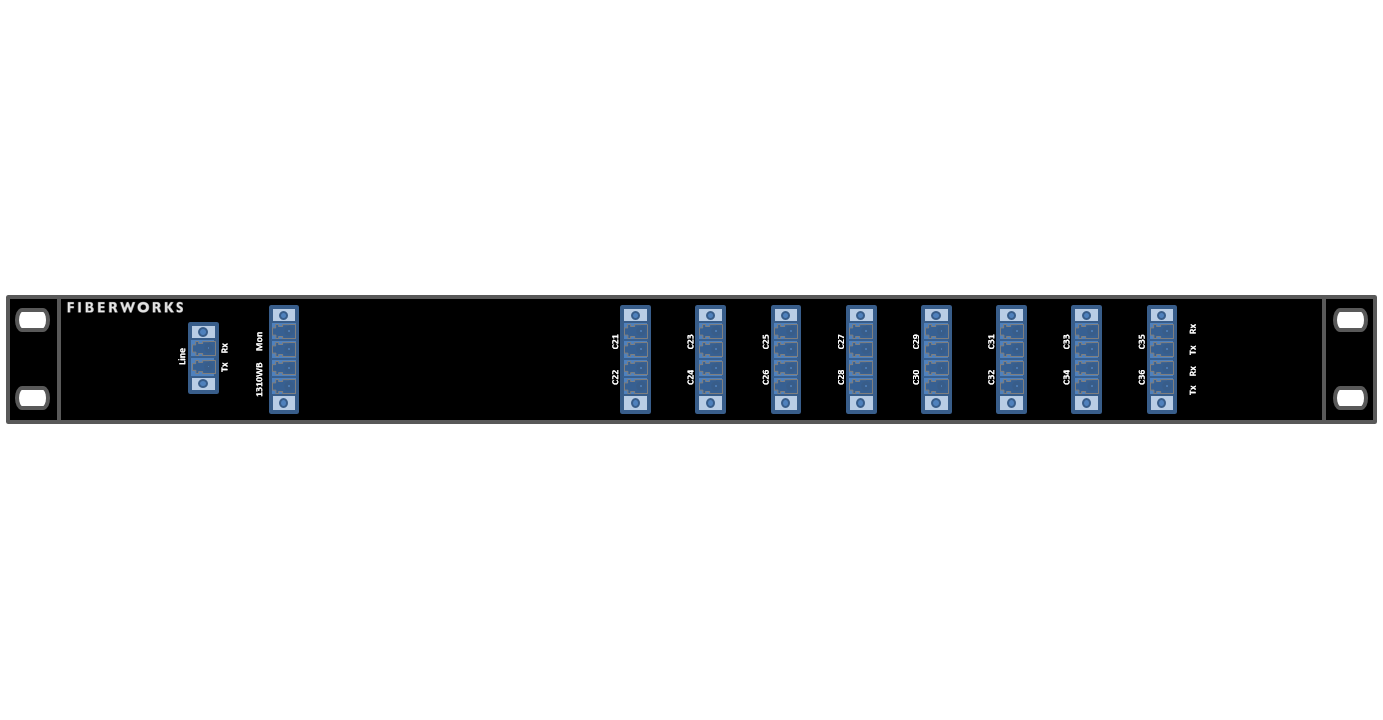

- 19" rack module, height 1U
- LC connectors
Technical info

Product information

Form factor 19" 1RU
Fiber type SM
Line fiber Double (fiber pair, mux+demux)
Channel count 16
Add/drop Capabilities No, mux/demux only
Connector type Straight (UPC, PC)
Other features
  • Expansion port 1310 nm
  • Monitor port
Customs classification codes
  • ECCN: EAR99
  • HS: 8517.62.0090
