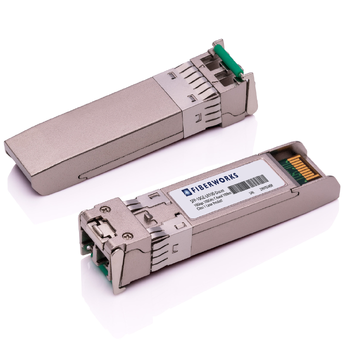

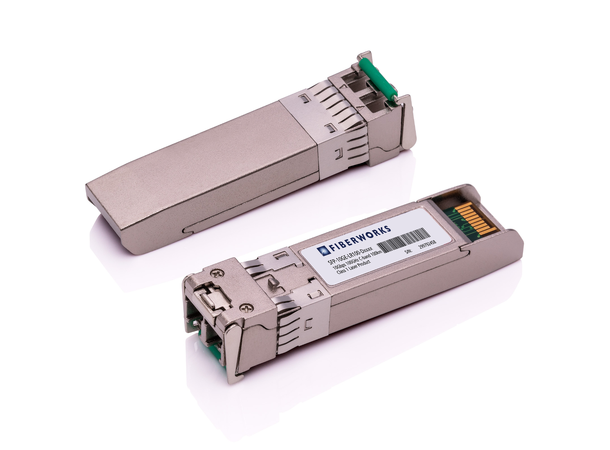

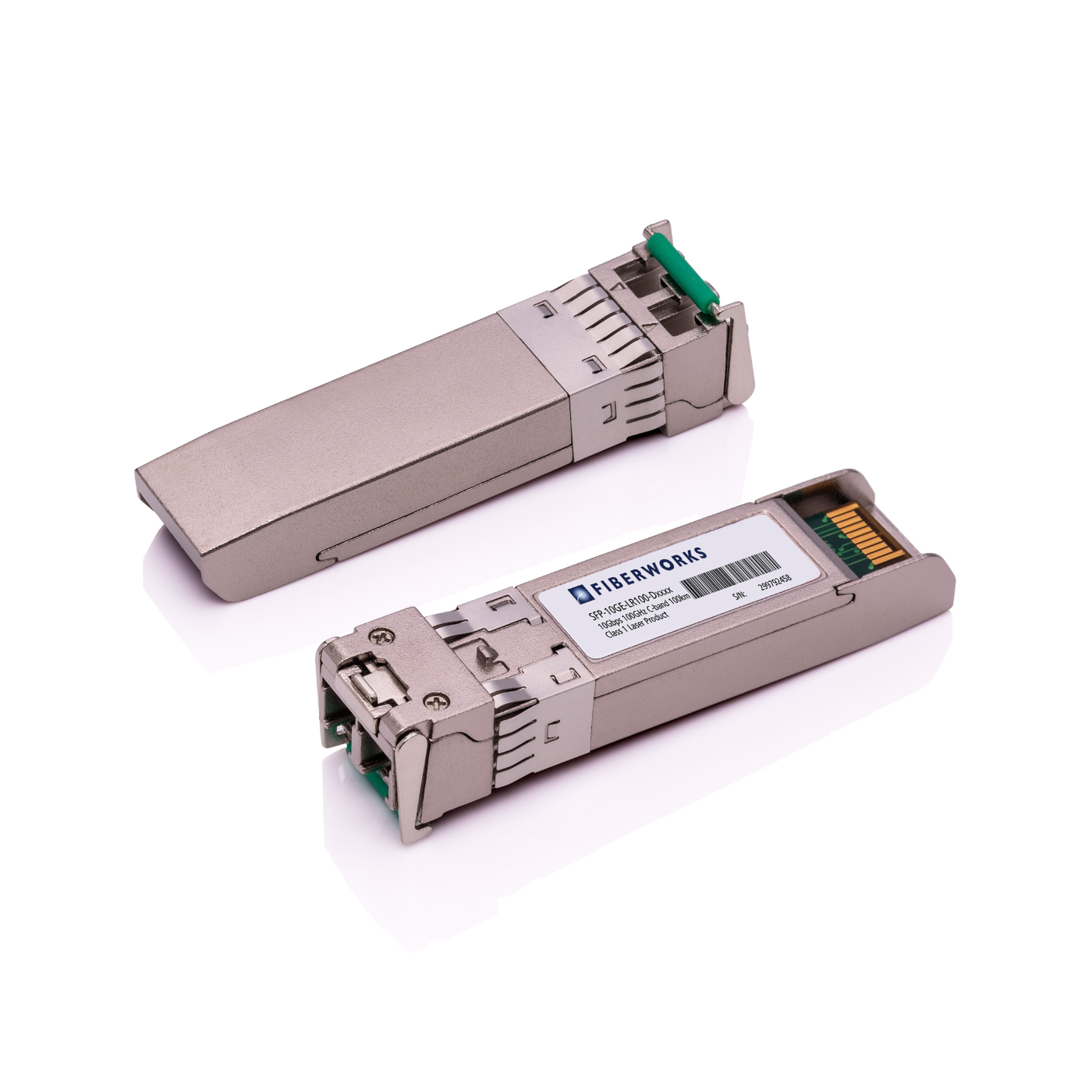

The Fiberworks DWDM SFP+ series single mode transceivers are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE Ethernet standards and are suitable for interconnections in 10G Ethernet environments.
The transceivers are available with wavelengths from 1528.77 nm (196.1 THz) to 1563.86 nm (191.7 THz) with 100 GHz increments.
The DWDM SFP+ series are compliant with SFP+ Multi-Source Agreement (MSA) specifications.
APPLICATIONS
• 10G Ethernet
• 10G Fibre Channel
• Sonet/OC-192 & SDH/STM-64
• DWDM Networks
FEATURES
• 100km transmission at DWDM
• 26 dB link budget
• Hot-Pluggable SFP+ footprint LC Optical Transceiver
• Small Form-Factor Pluggable + (SFP+) MSA compatible
• 45 DWDM channels (λ): 1528.77 nm to 1563.86 nm
• SFF-8472 Digital Diagnostics Monitoring
• Single 3.3 V Power
• Temperature-stabilized DWDM EML laser transmitter
• 100Ghz ITU Grid, C-Band
