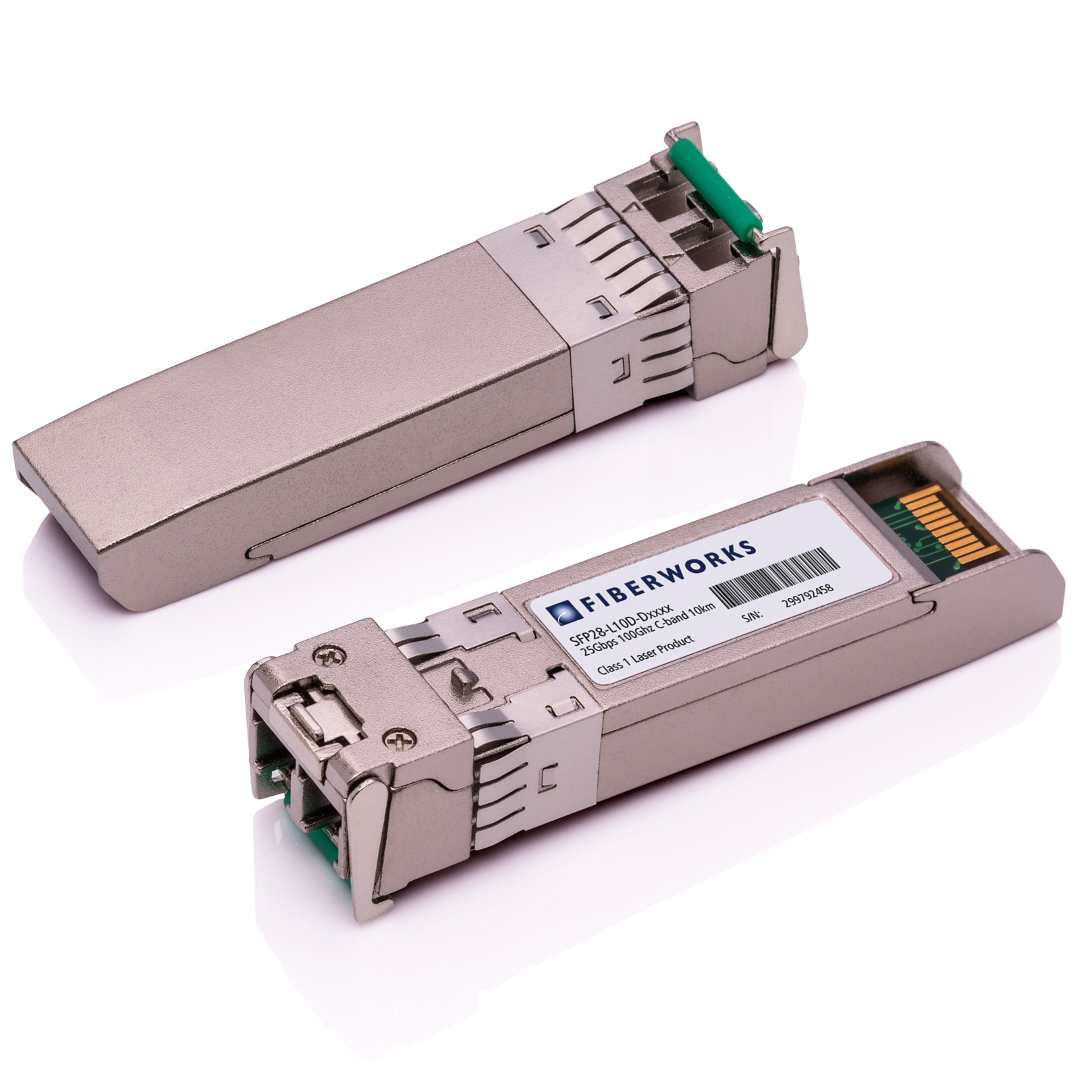

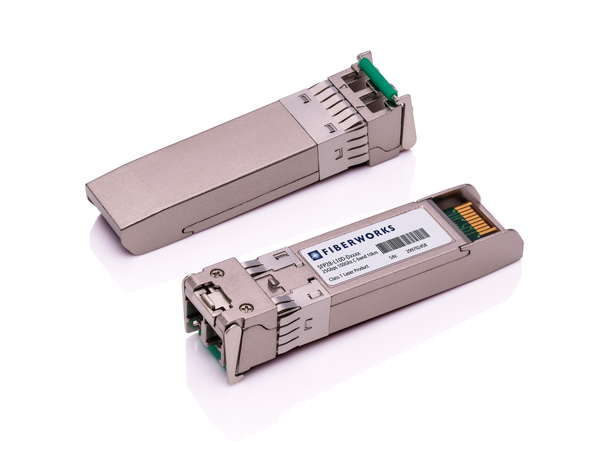

The SFP28 DWDM transceiver is a long range 25 Gbit/s pluggable optical module for data communications such as 25GBASE Ethernet.
The transceivers are available with wavelengths from 1528,77 nm (196,1 THz) to 1563,86 nm (191,7 THz) with 100 GHz increments.
The module is fully compliant with all SFP28 related MSA standards and Digital Diagnostic functions are available through an I2C interface. SFP28-DWDM complies with IEEE 802.3 and 25Gbase-LR.
APPLICATIONS
• 25GBASE-LR
• DWDM Systems
FEATURES
• Up to 10km transmission on SM fiber
• Hot-Pluggable SFP footprint
• LC Optical interface
• SFP28 MSA compatible
• Digital Diagnostics Monitoring interface
• Single 3.3 V power supply
• Power dissipation < 2 W
• RoHS-6 compliant (lead-free)
• Case operating temperature: 0°C to 70°C
