Fiberworks 16+1 ch. DWDM Mux/Demux, LGX2

C44-C59, 100GHz, PON & Mon, single fiber

Product nr: F-DMUX-SF16+1-HB-ML2
DescriptionTechnical infoAccessories
Description

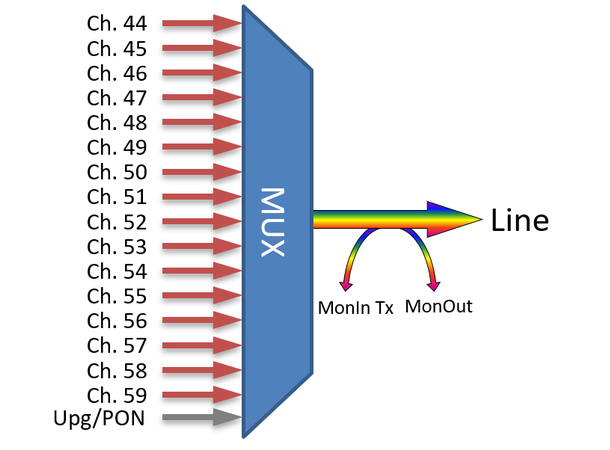

FEATURES
- Dense WDM in compliance with ITU-T G.694.1
- 16 DWDM channels 44-59 with 100 GHz spacing
- For bidi operation on single fiber
- Insertion loss (max/typical): < 3.6 / 3.4 dB
- Upgrade port for PON (GPON / XGS-PON)
- Two 2% monitor ports for easy troubleshooting
- Protocol transparent (support 1G, 10G etc.)
- LGX2 form factor, three modules fit in 1U in 19" rack or twelve modules in 3U.
- LC/UPC connectors
Technical info

Product information

Form factor LGX2
Fiber type SM
Line fiber Single (bidi, mux/demux)
Channel count 16
Add/drop Capabilities No, mux/demux only
Connector type Straight (UPC, PC)
Other features
  • Expansion port 1310 nm
  • Expansion port 1550 nm
  • Monitor port
Customs classification codes
  • ECCN: EAR99
  • HS: 8517.62.0090
