FEATURES
• Dense WDM in compliance with ITU-T G.694.21
• 16 DWDM channels 192.5 – 194.0 THz, 100 GHz spacing
• Can be used as mux or demux
• Insertion loss < 4.5 dB
• All channels fits in standard 1551 nm CWDM channel

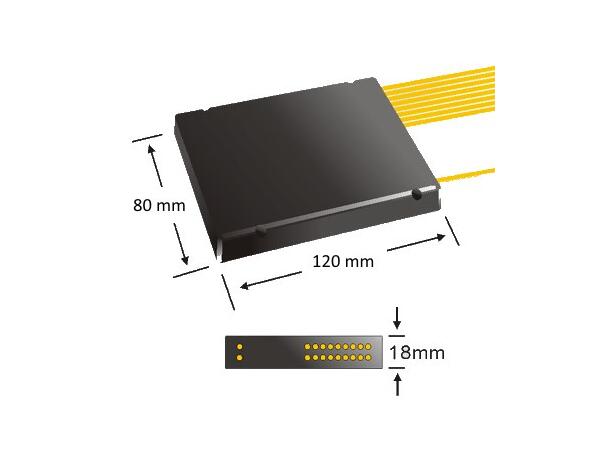

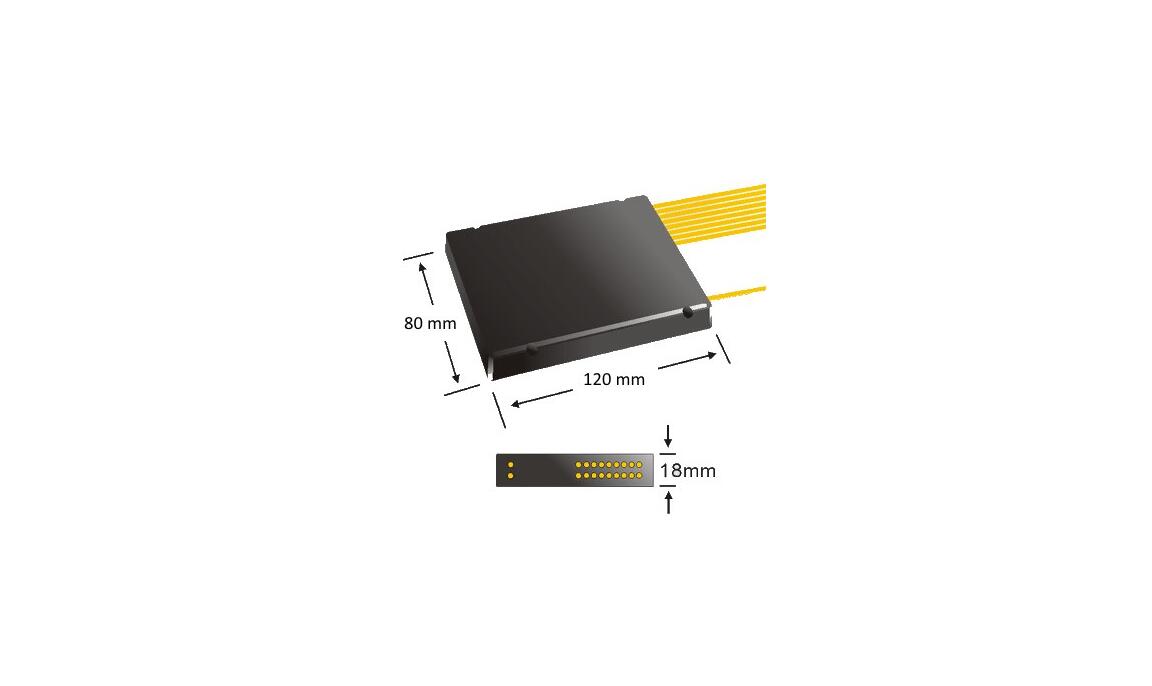

• 120 x 80 x 18 mm box
• 1m pigtails, 900µm
• Operating temperature: -40 ~ +80 °C
• Based on thin film optics with epoxy free optical path
• Protocol transparent (support 1G, 10G etc.)
