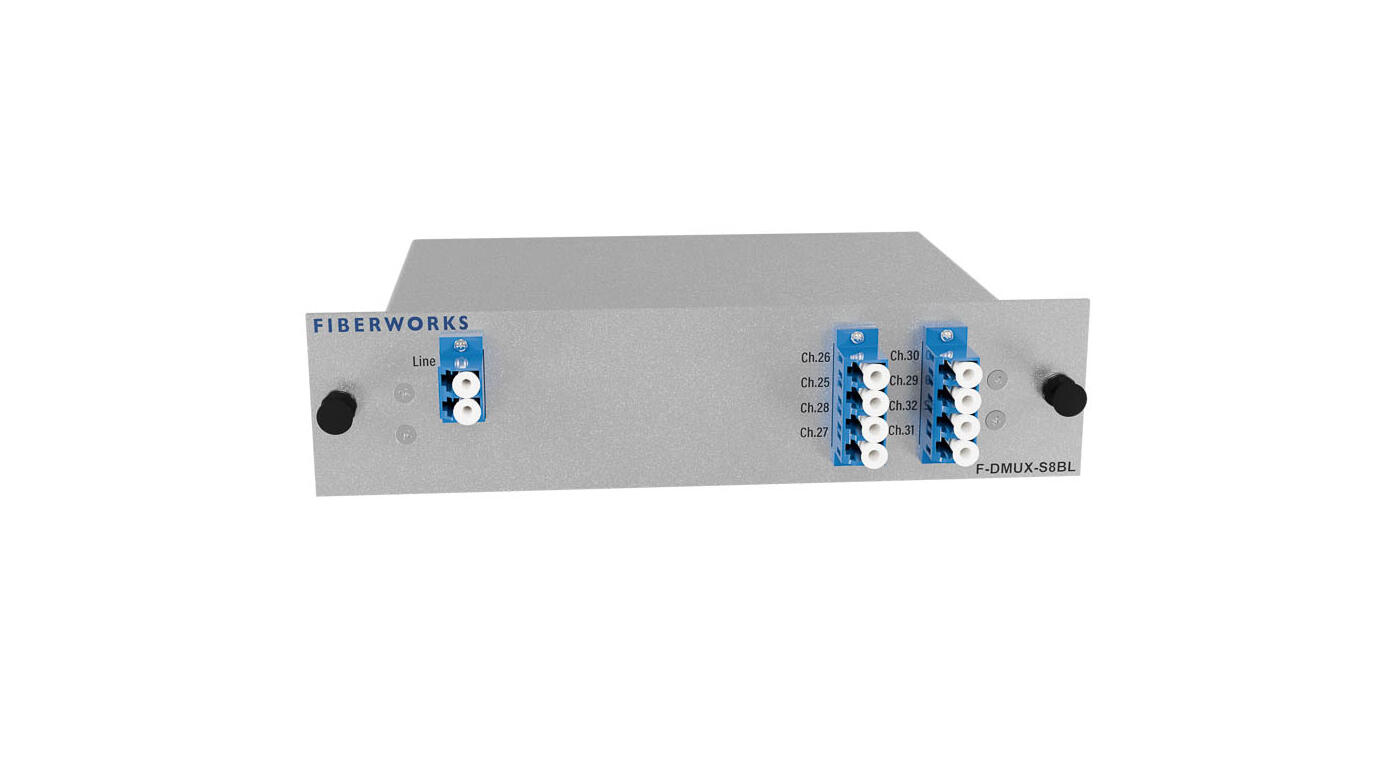

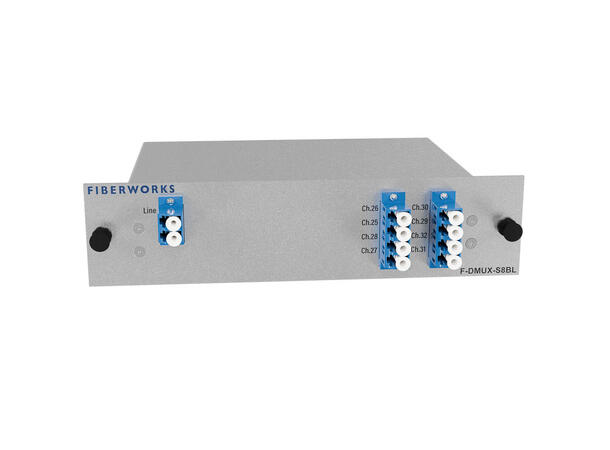

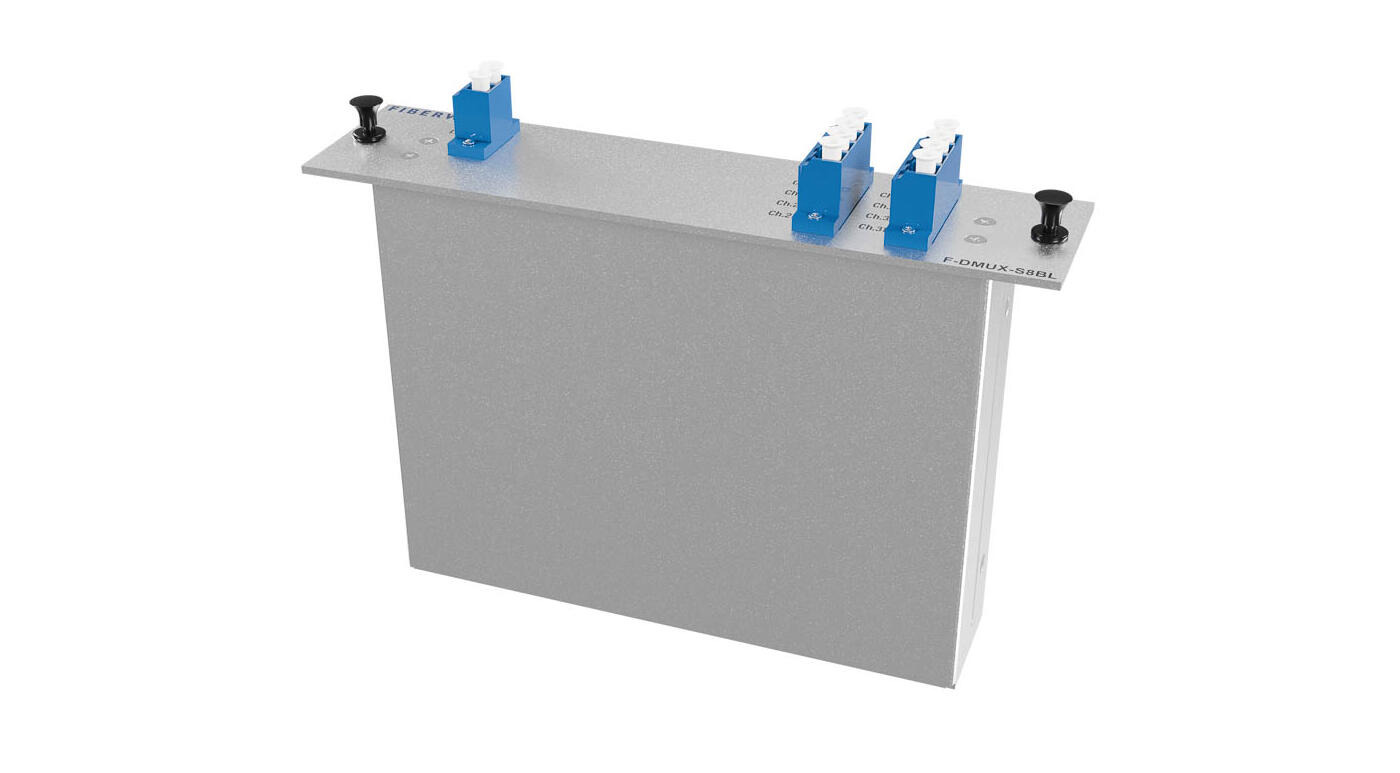

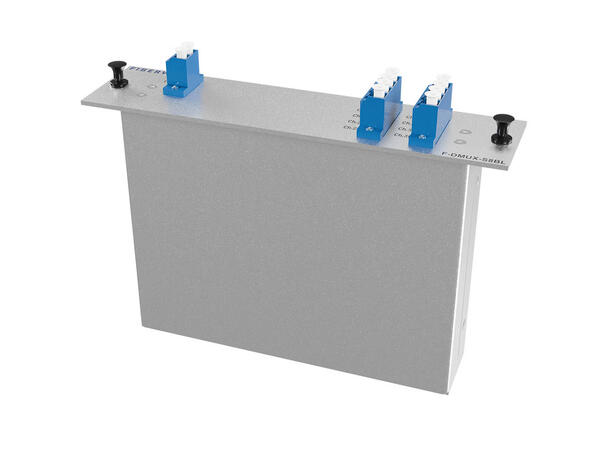

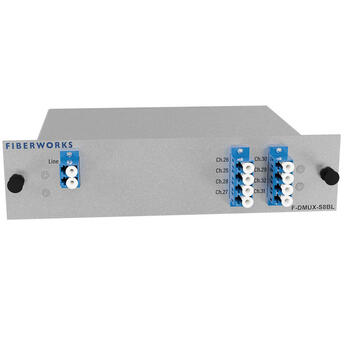

Fiberworks 8 ch. DWDM Mux/Demux, Side B

C25-C32, 100 GHz, Single fiber, Low loss

Product nr: F-DMUX-S8BL-2532-LU
DescriptionTechnical infoAccessoriesAlternatives
Description
FEATURES
- Dense WDM in compliance with ITU-T G.694.1

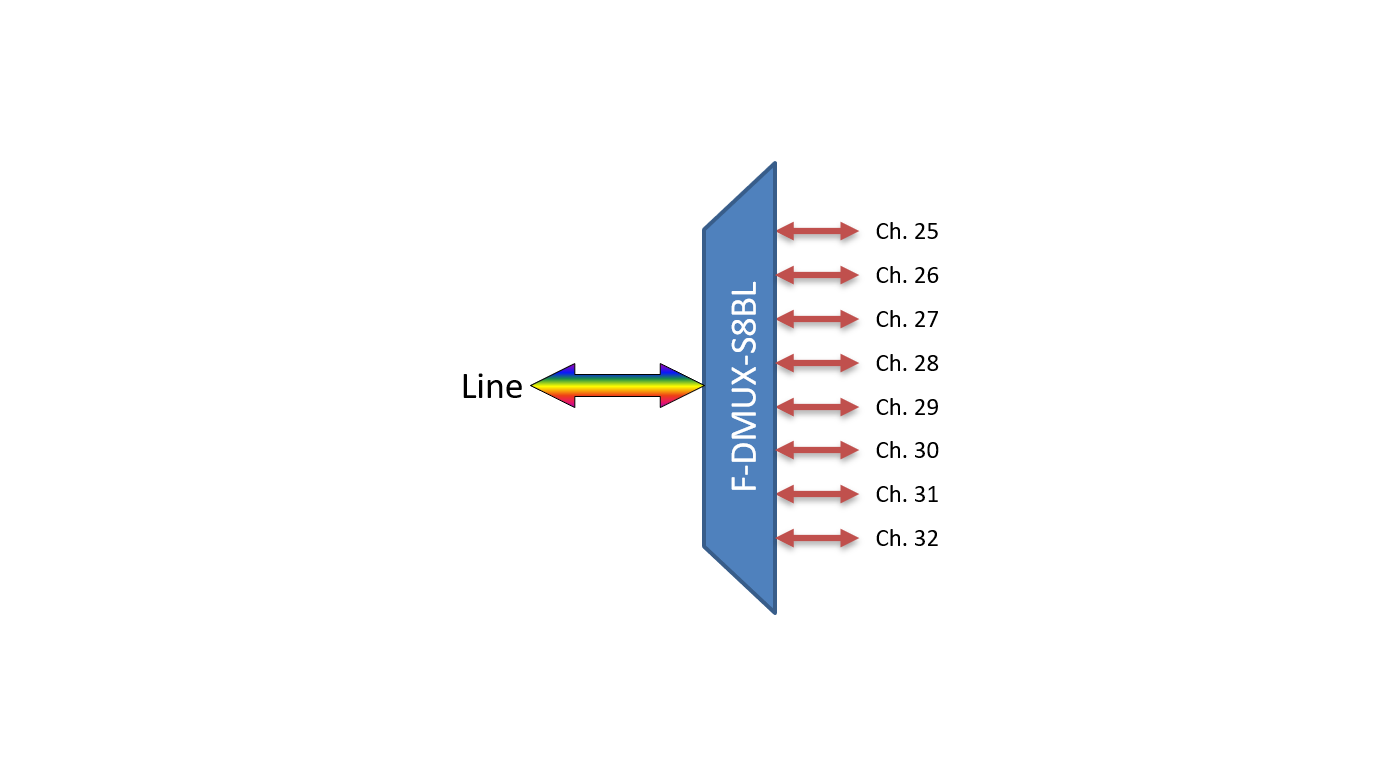

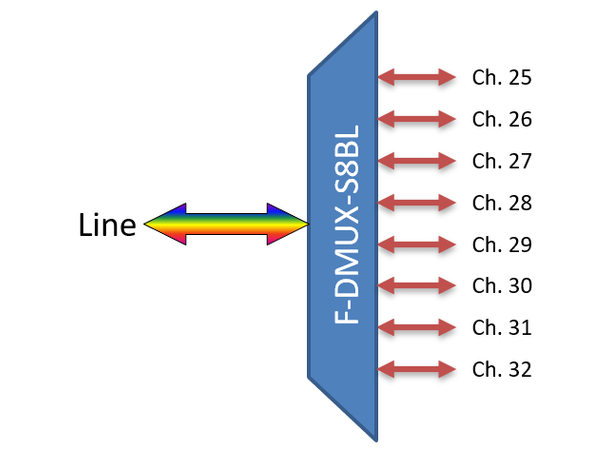

- 8 DWDM channels 25-32 with 100 GHz spacing

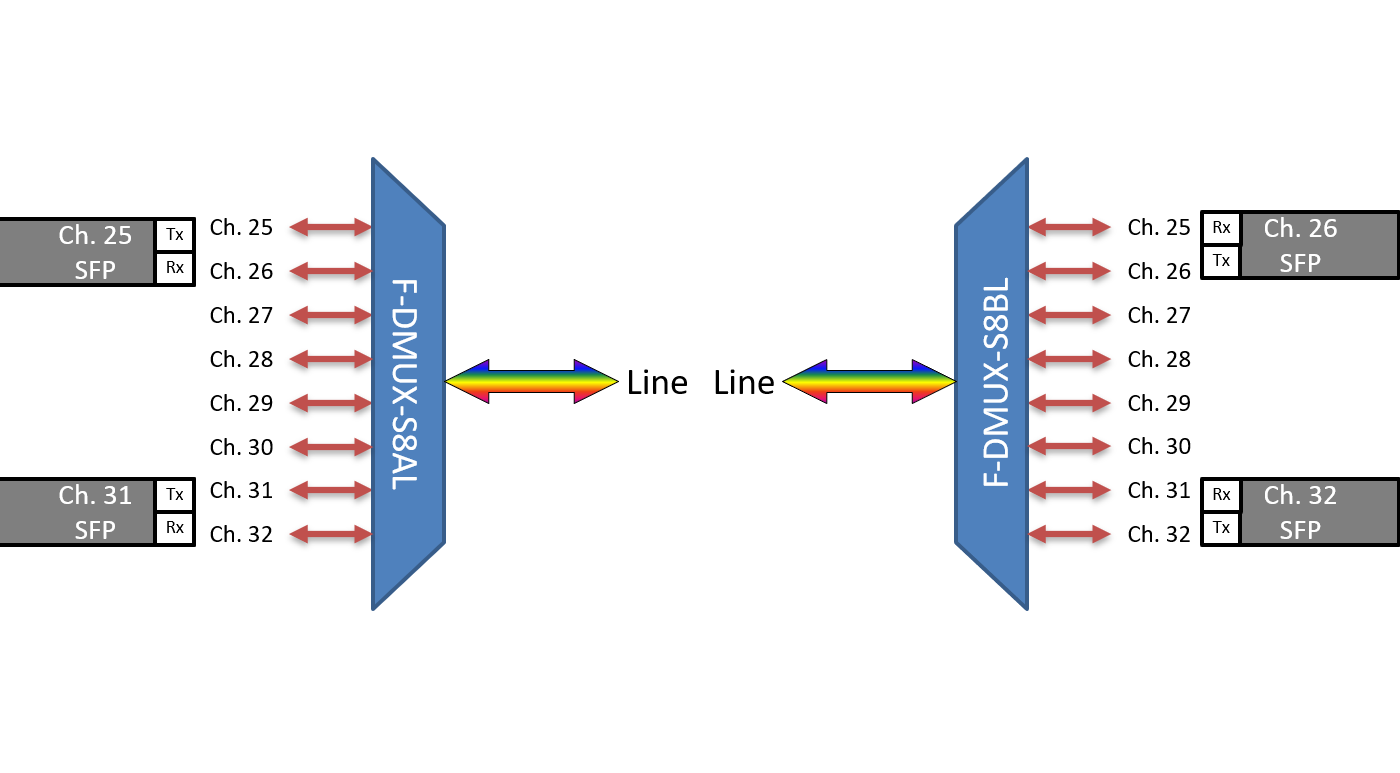

- For bidi operation on single fiber
- Insertion loss: < 2.0 dB

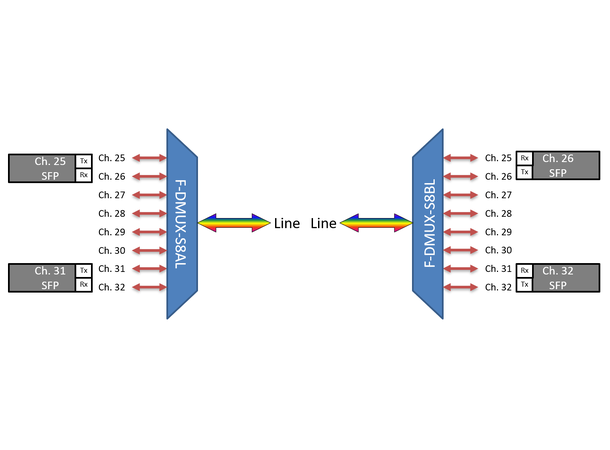

- Insertion loss mux+demux when paired with type A mux (typ/max): 2.8 / 3.0 dB
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack

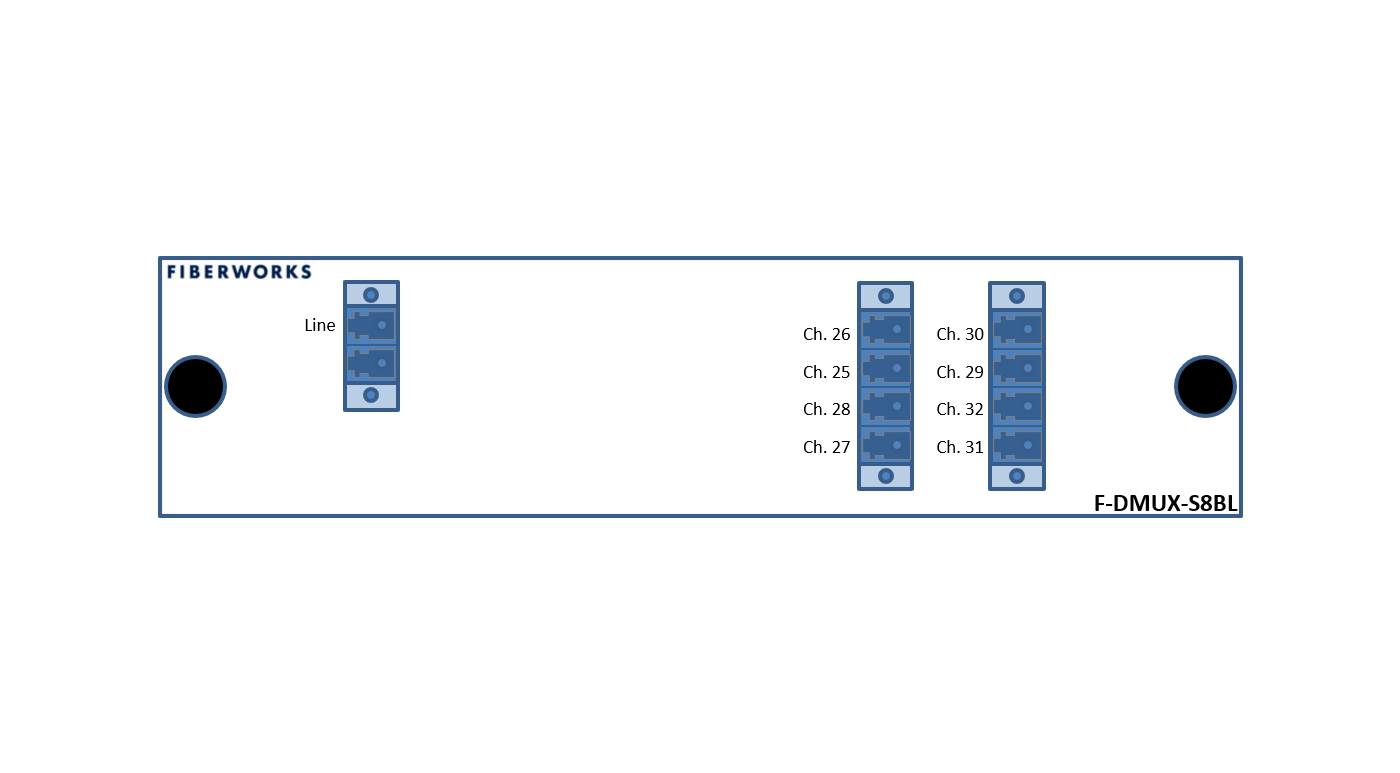

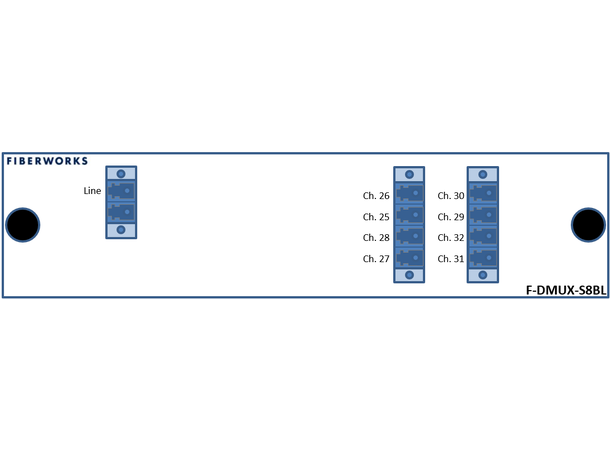

- LC/UPC connectors

Technical info

Product information

Form factor Fiberworks
Fiber type SM
Line fiber Single (bidi, mux/demux)
Channel count 8
Add/drop Capabilities No, mux/demux only
Connector type Straight (UPC, PC)
Customs classification codes
  • ECCN: EAR99
  • HS: 8517.62.0090
