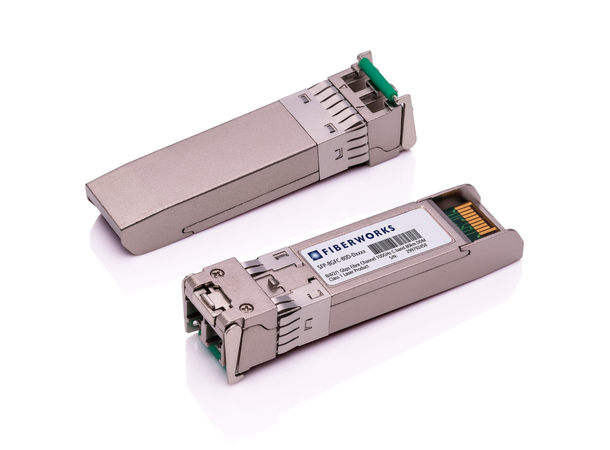

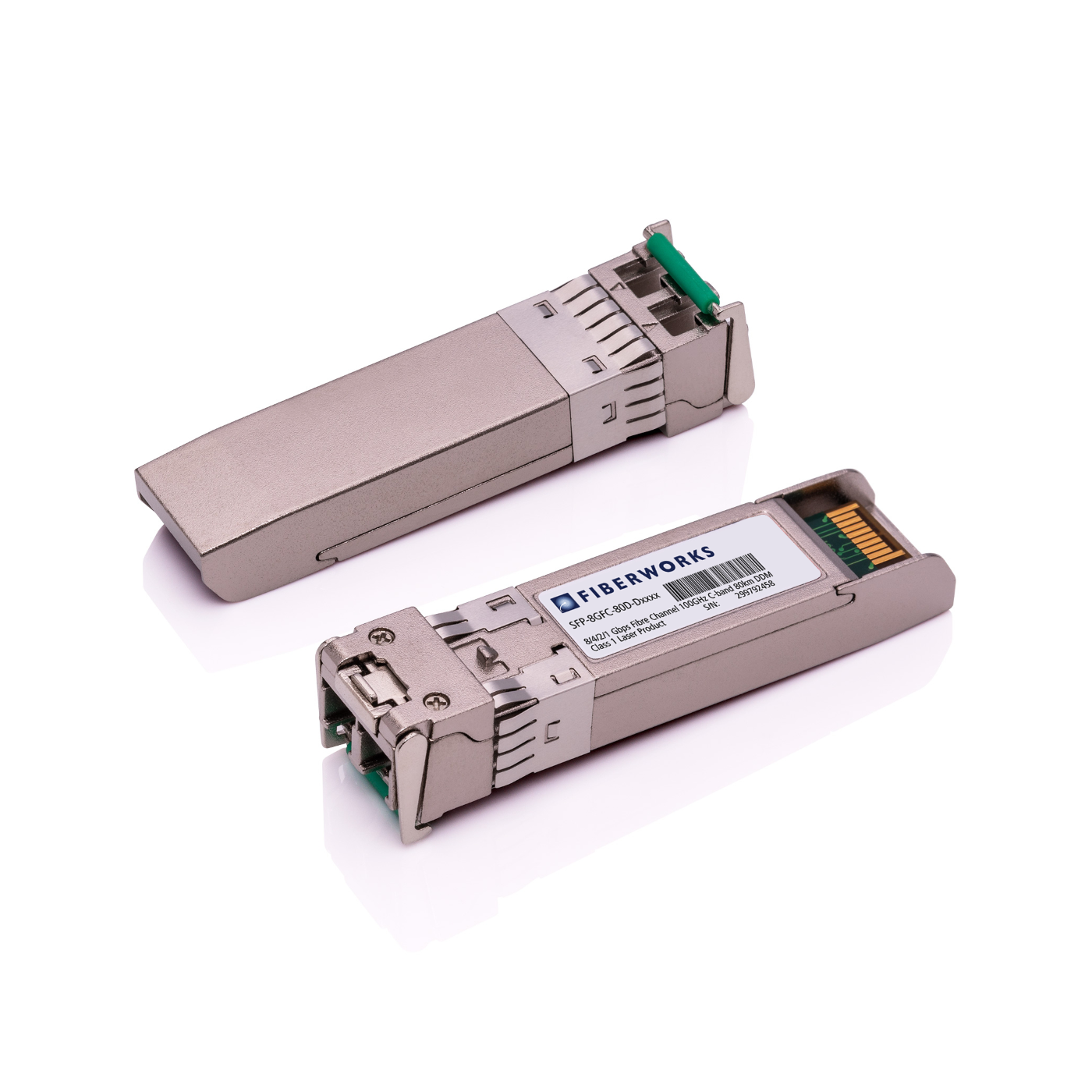

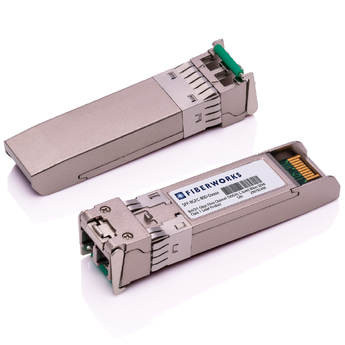

The Fibre Channel DWDM SFP+ series single mode transceivers are small form factor pluggable modules for bi-directional serial optical data communications. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. These modules are made for 1G/2G/4G/8G Fibre Channel and utilize Clock and Data Recovery (CDR) in order to provide the best possible performance.
The transceivers are available with wavelengths from 1528,77 nm (196,1 Thz) to 1563,86 nm (191,7 Thz) with 100 Ghz increments.
The DWDM SFP+ series are compliant with SFP+ Multi-Source Agreement (MSA) specification SFF-8431.
APPLICATIONS
• 10GBase-ZR at 10.31Gb/s
• 10GBase-ZW at 9.95Gb/s
• 1000Base-ZX Ethernet
• 8GFC at 8.5Gb/s
• 4GFC at 4.25Gb/s
• 2GFC at 2.125Gb/s
• 1GFC at 1.0625Gb/
FEATURES
• Hot-pluggable SFP+ footprint
• Temperature-stabilized DWDM EML laser transmitter and PIN photo-detector
• Up to 11.3Gb/s bi-directional data links
• Transmission distance of 80km with SMF
• 100GHz ITU Grid, C-Band
• 45 DWDM channels (λ): 1528.77 nm – 1563.86 nm
• SFF-8472 Digital Diagnostic Function
• Single 3.3V power supply, low power consumption
• Operating Case Temperature: -5°C to 70°C
