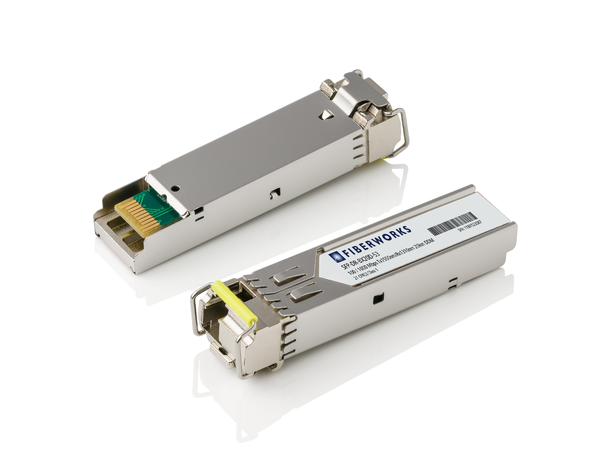

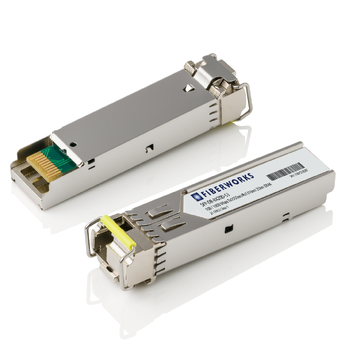

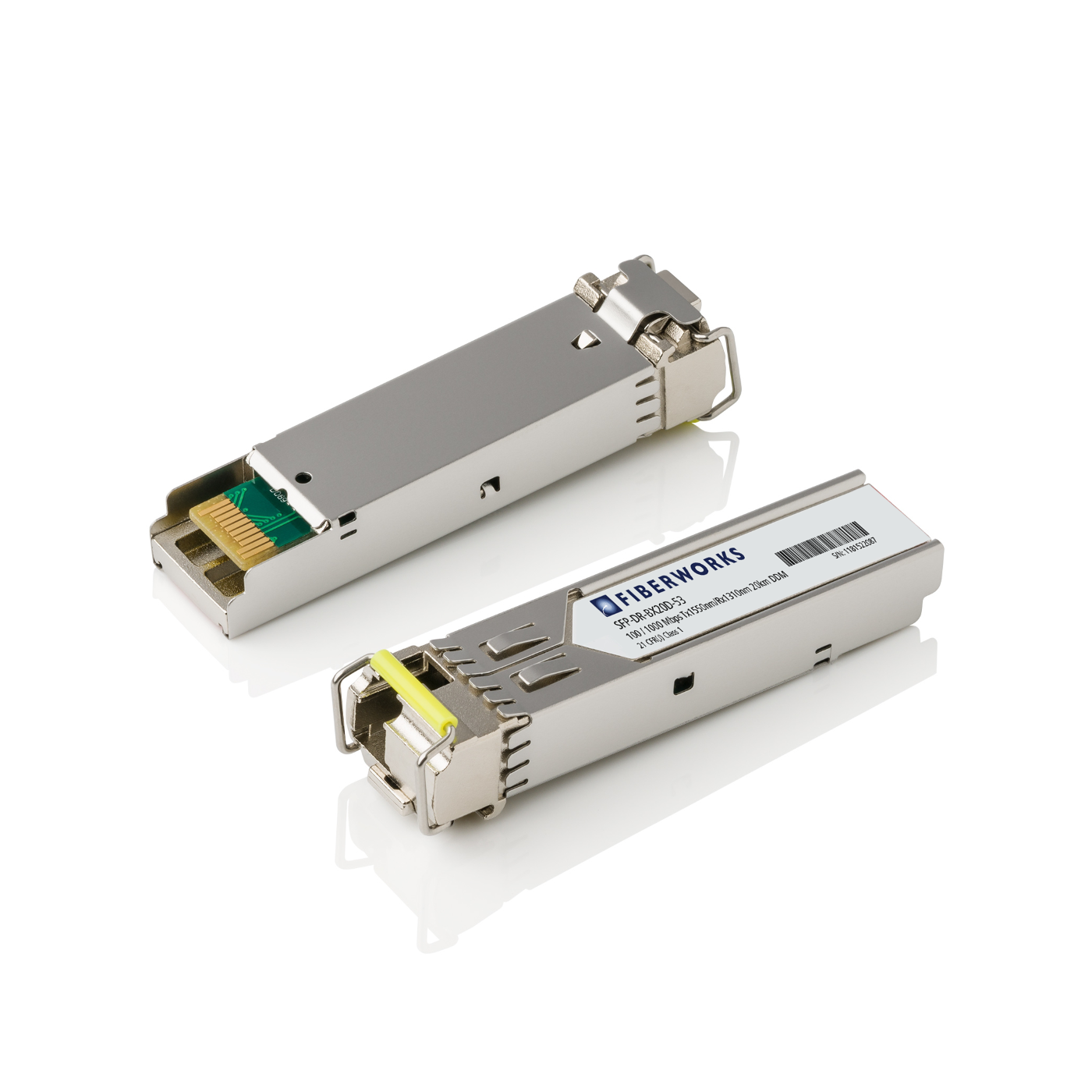

The SFP-MR-BX20D is fully compliant with the latest industrial SFP Multi-Source Agreement (MSA. It supports data rates in a wide range of 155 Mbps ~ 2,67Gbps. The transceiver operates bidirectionally for single-fiber operation; is hot pluggable and can transmit up to 20 km of SM fiber.
APPLICATIONS
• 155 Mb/s to 2.67 Gb/s
• SDH (S1/4/16.1)
• 1000Base Gigabit Ethernet
• 1x/2x Fibre Channel
FEATURES
• Up to 20 km transmission on SM fiber
• 1550 nm / 1310 nm operation
• Hot-Pluggable SFP footprint
• Optical LC interface for bi-directional operation
• Operating temperature -10 °C to 70 °C
