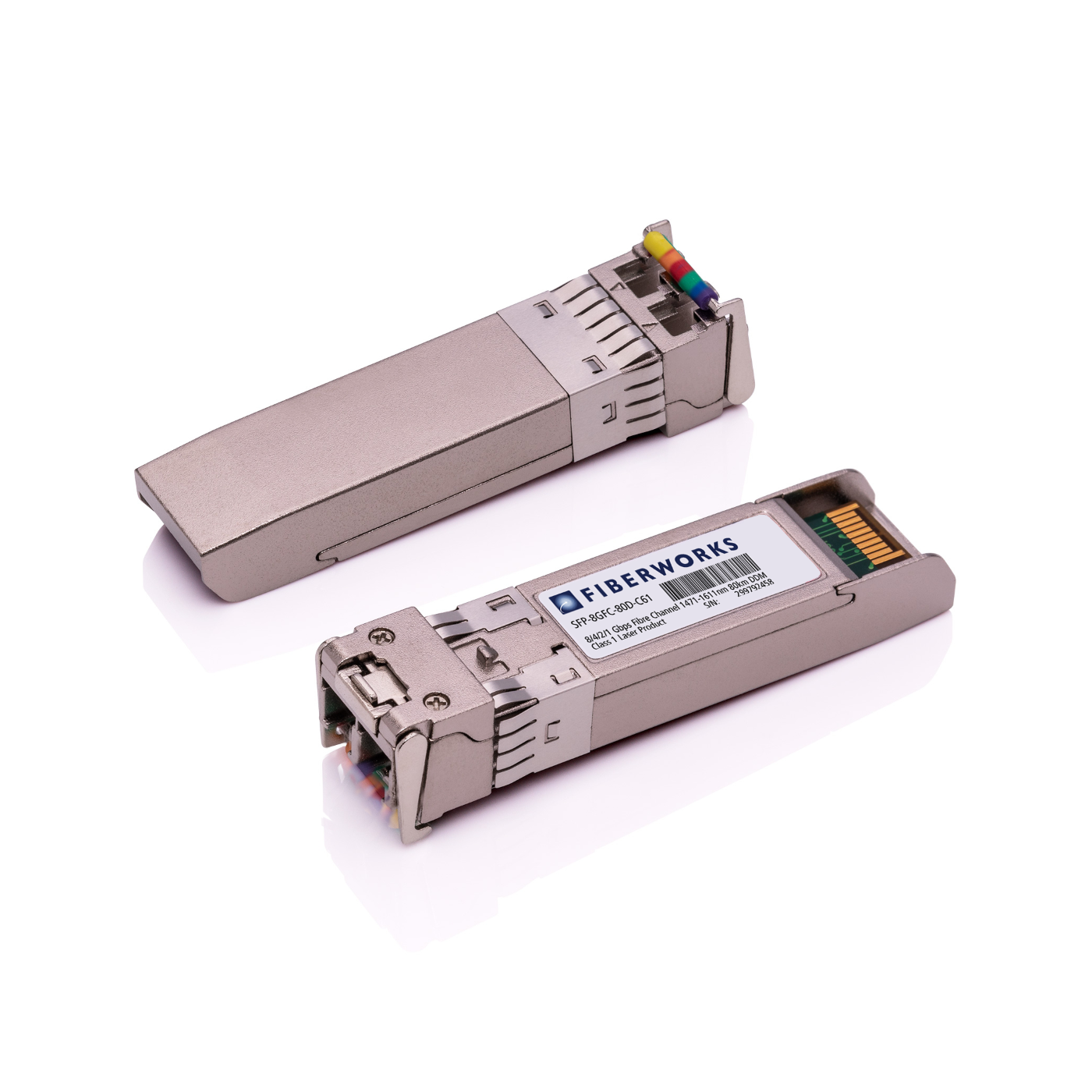

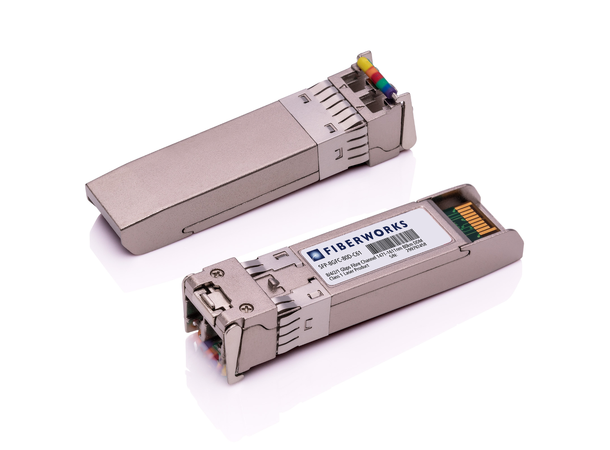

SFP+, 8/4/2/1G Fibre Channel, CDR, 80km

CWDM 1471nm-1611nm, 25dB, DDM, SM

Product nr: SFP-8GFC-80D-Cxx

Compatibility

Description

APPLICATIONS
• 8.5 Gb/s, 4.25 Gb/s, 2,125 Gb/s & 1.0625 Gb/s Fibre Channel
• 1000BASE Ethernet

FEATURES
• 80km transmission
• Hot-Pluggable SFP+ footprint LC Optical Transceiver
• Small Form-Factor Pluggable (SFP) MSA compatible

• 8 CWDM wavelengths (λ): 1471 nm to 1611 nm
• SFF-8472 Digital Diagnostic Function

Technical info

Form factor	SFP+
Protocol / bit rate	8G Fibre Channel
Media type	Singlemode
Reach (dB)	25
Reach (km)	80
Wavelength (nm)	CWDM
Laser Type	EML
Detector type	APD
Line Modulation	NRZ
Tx power min. [dBm]	0
Tx power max. [dBm]	+4
Rx sensitity [dBm]	-25
Rx overload limit [dBm]	-8
DDM	Yes
Connector	LC Duplex
Safety class	Laser Class 1
Operating temperature range	0°C - +70°C (Standard)
Temperature range, storage	-40°C - +85°C
Customs classification codes	ECCN: 5A991 HS: 8517.62.0090
