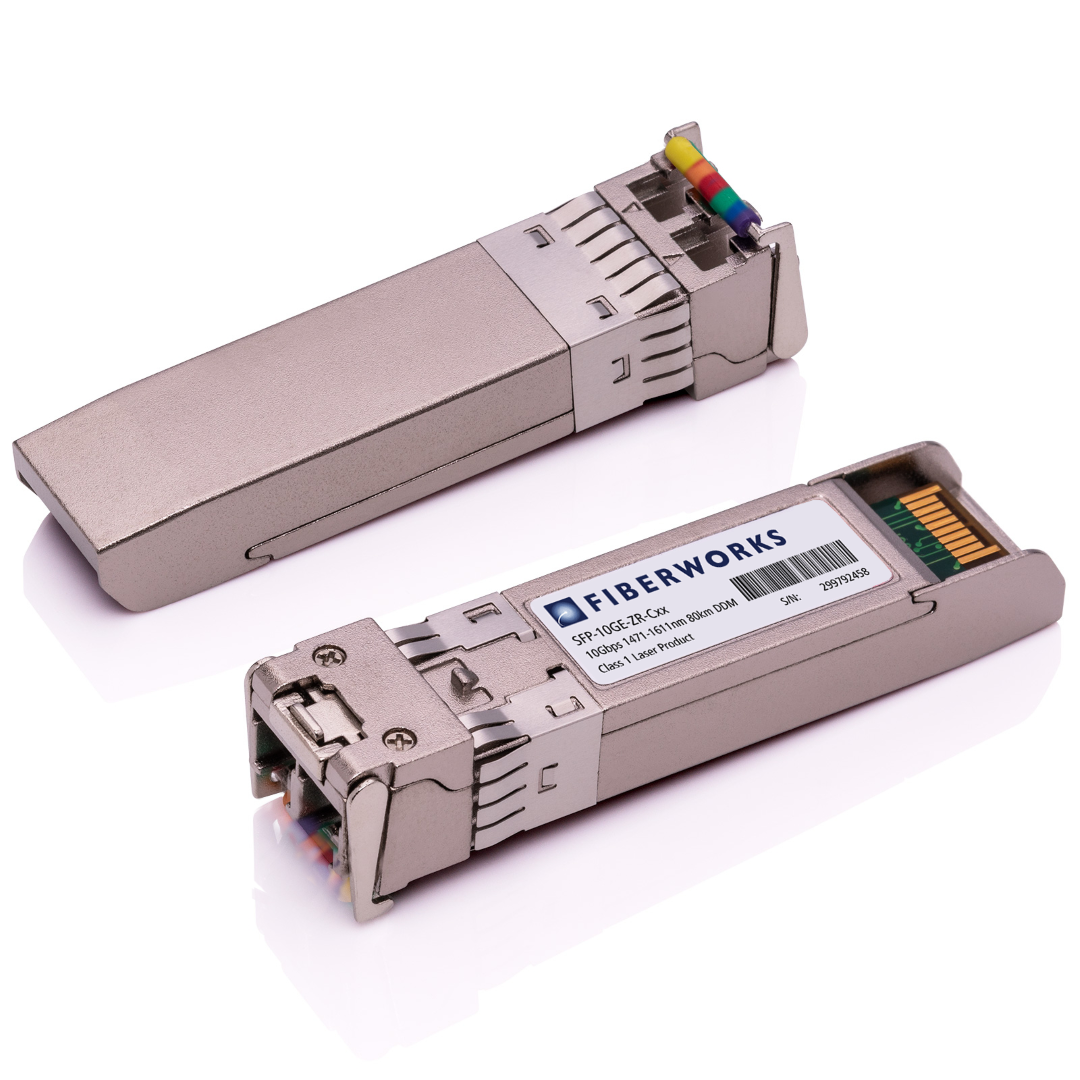

The SFP-10GE transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE Ethernet standards and are suitable for interconnections in 10G Ethernet environments.
The transceivers can also be used for a wide range of other protocols and bitrates between 600 Mbps and 11.1 Gbps.
CWDM modules operate at nominal Coarse Wavelength Division Multiplexing (CWDM) wavelengths. Eighteen center wavelengths are available from 1271 nm to 1611 nm with each step being 20 nm. The CWDM characteristics are fully compliant to the wavelength parameters specified in ITU standards G.694.2 and G.695.
APPLICATIONS
• 10GBASE-ZR
• CWDM Networking
FEATURES
• 80 km transmission
• 25 dB link budget
• 8 CWDM wavelengths (λ): 1471 nm to 1611 nm
• Hot pluggable SFP+ MSA form factor
• Data rate up to 11.1 Gb/s
• CWDM EML laser transmitter
• APD photo-detector
• Single 3.3Vpower supply
• Low power consumption
• Duplex LC optical receptacle
• Digital Optics Monitoring (DOM)
• RoHS-6 compliant (lead-free)
• Operating Case Temperature:
Standard: -5°C to 70°C
