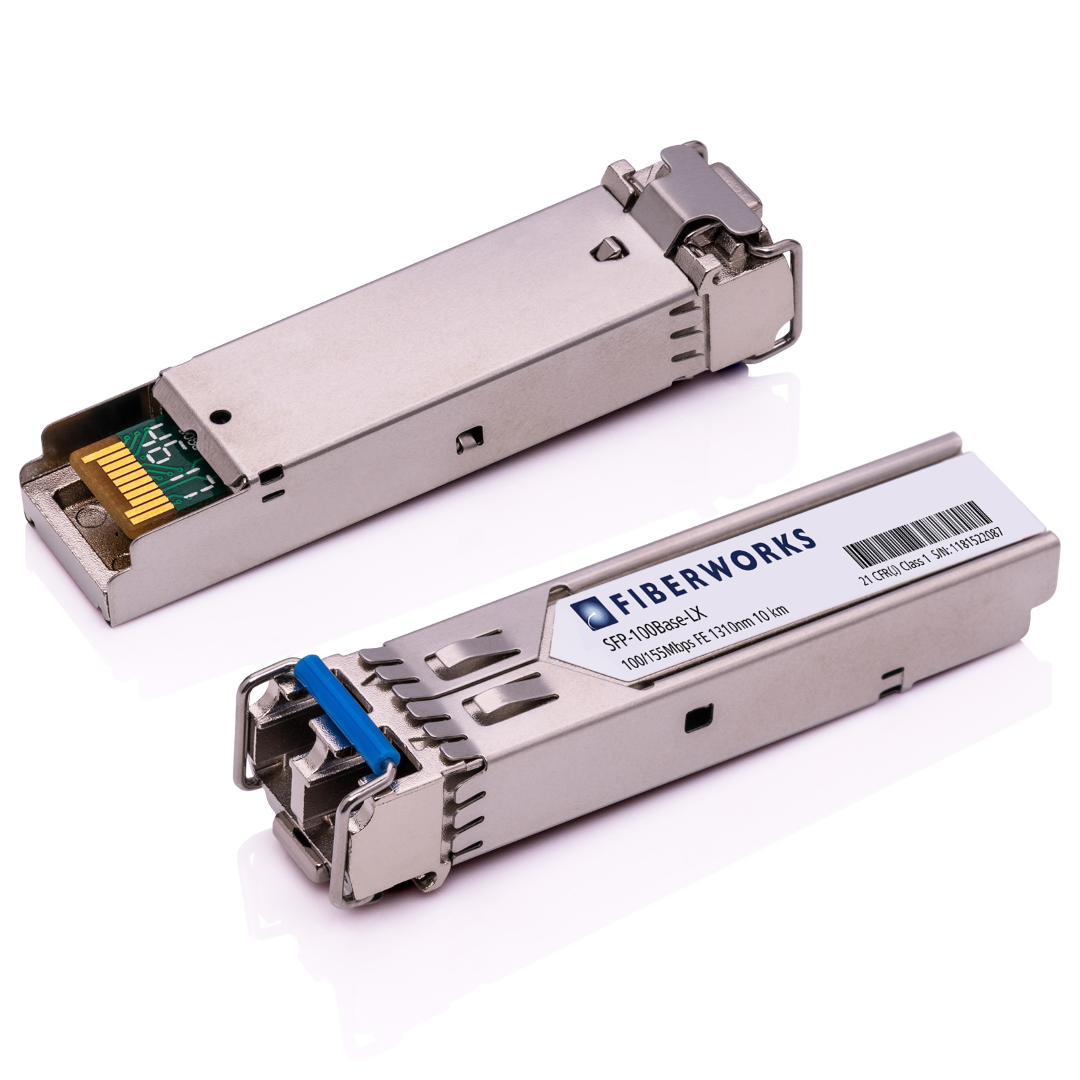

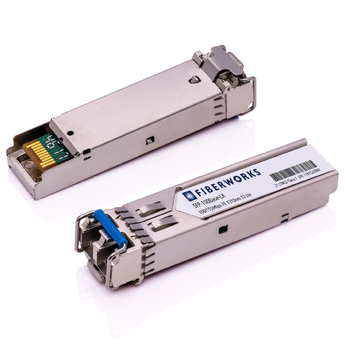

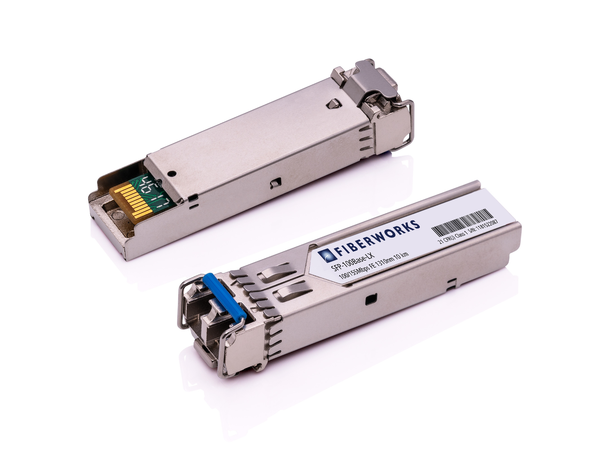

SFP, 100/155Mbps FE, 10km 1310nm, 14dB, SM/MM

SFP, 100/155Mbps FE, 10km

1310nm, 14dB, SM/MM

Product nr: SFP-100Base-LX
Product
DescriptionTechnical infoAccessories
Description

The SFP-100Base are fully compliant with the latest industrial SFP Multi-Source Agreement (MSA). They support data rates in a wide range of 100~155.520 Mbps and can be used in datacom or FTTx applications.


APPLICATIONS
• 100Base Ethernet
• FTTx

FEATURES
• Hot-Pluggable SFP footprint
• Operating temperature 0 °C to 70 °C
Technical info

Product information

Form factor SFP
Protocol / bit rate Fast Ethernet
Media type
  • Singlemode
  • Multimode
Reach (dB) 14
Reach (km) 10
Wavelength (nm) 1310
Laser Type FP (Fabry-Perot)
Detector type PIN
Line Modulation NRZ
Tx power min. [dBm] -15
Tx power max. [dBm] -8
Rx sensitity [dBm] -29
Rx overload limit [dBm] -10
DDM No
Connector LC Duplex
Safety class Laser Class 1
Operating temperature range 0°C - +70°C (Standard)
Temperature range, storage -40°C - +85°C
Customs classification codes
  • ECCN: 5A991
  • HS: 8517.62.0090
