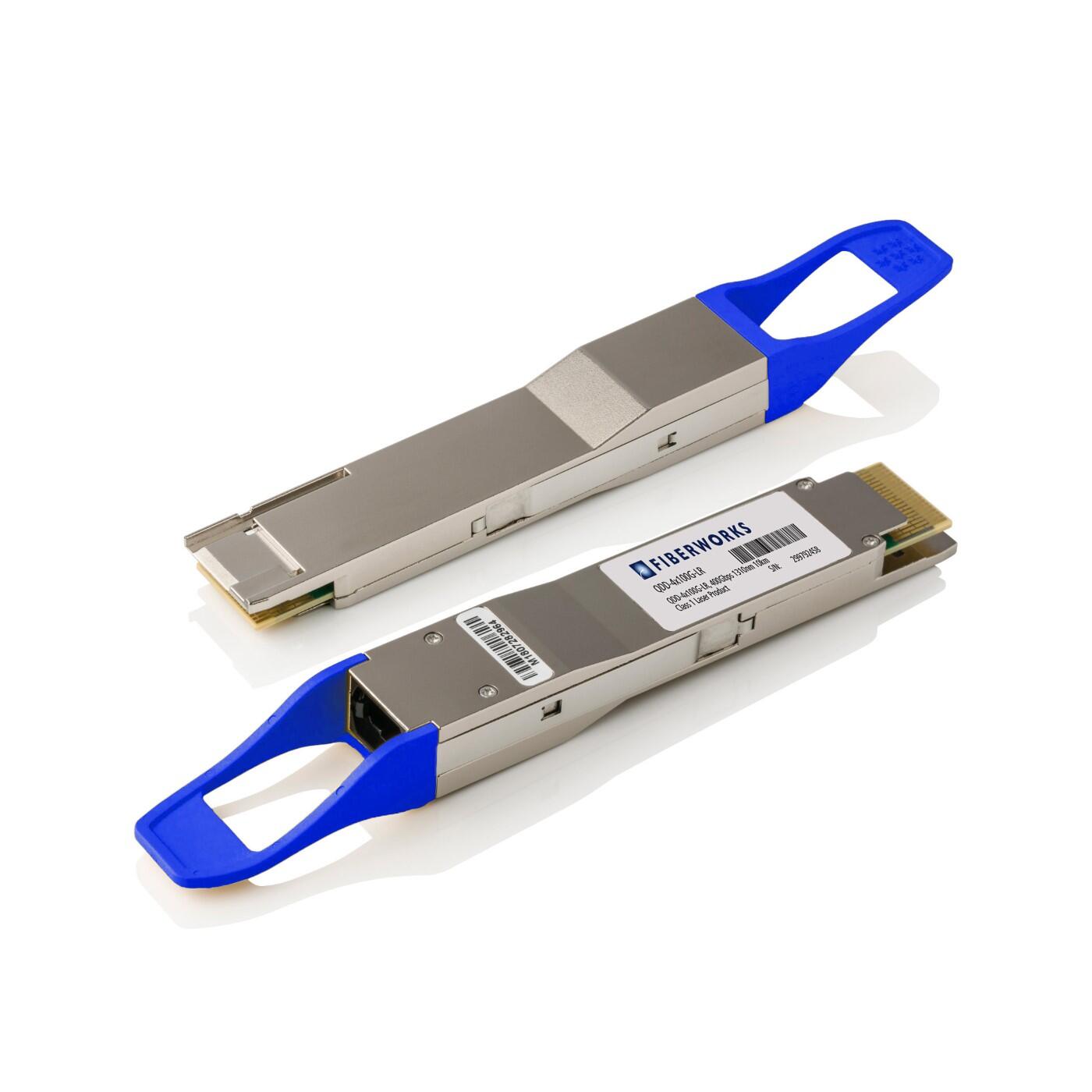

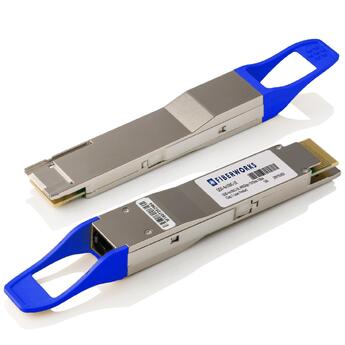

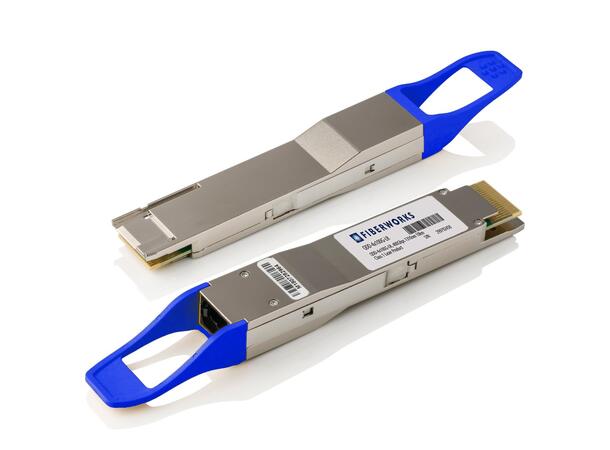

The QSFP-DD 4xLR1 transceiver is a 400 Gbit/s pluggable module for optical data communications such as 400GBASE Ethernet. The transceiver operates with four parallel data streams of 106,25 Gbps in order to provide an aggregated signaling rate of 425 Gbps. The module has a MPO8 male connector and uses four fiber pairs to create the four data lanes. Each lane operates at 1310nm and is interoperable with 100GBASE-LR1 transceivers. Hence the QSFP-DD 4xLR1 can easily be used for breakout of 400G to 4x 100G.
The module is fully compliant with all QSFP-DD related MSA standards and Digital Diagnostic functions are available through an I2C interface. QDD-4x100G-LR complies with IEEE 802.3 and 100Gbase-LR.
APPLICATIONS
• 400G Ethernet
• 4x 100G Ethernet
• Data Center and LAN
FEATURES
• Compliant with 100Gabse-LR1
• Uses 4 parallell SM fiber pairs on 1310nm
• Up to 106.25 Gbps Data rate per wavelength
• Up to 10km transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP-DD MSA with MPO connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 12 W
