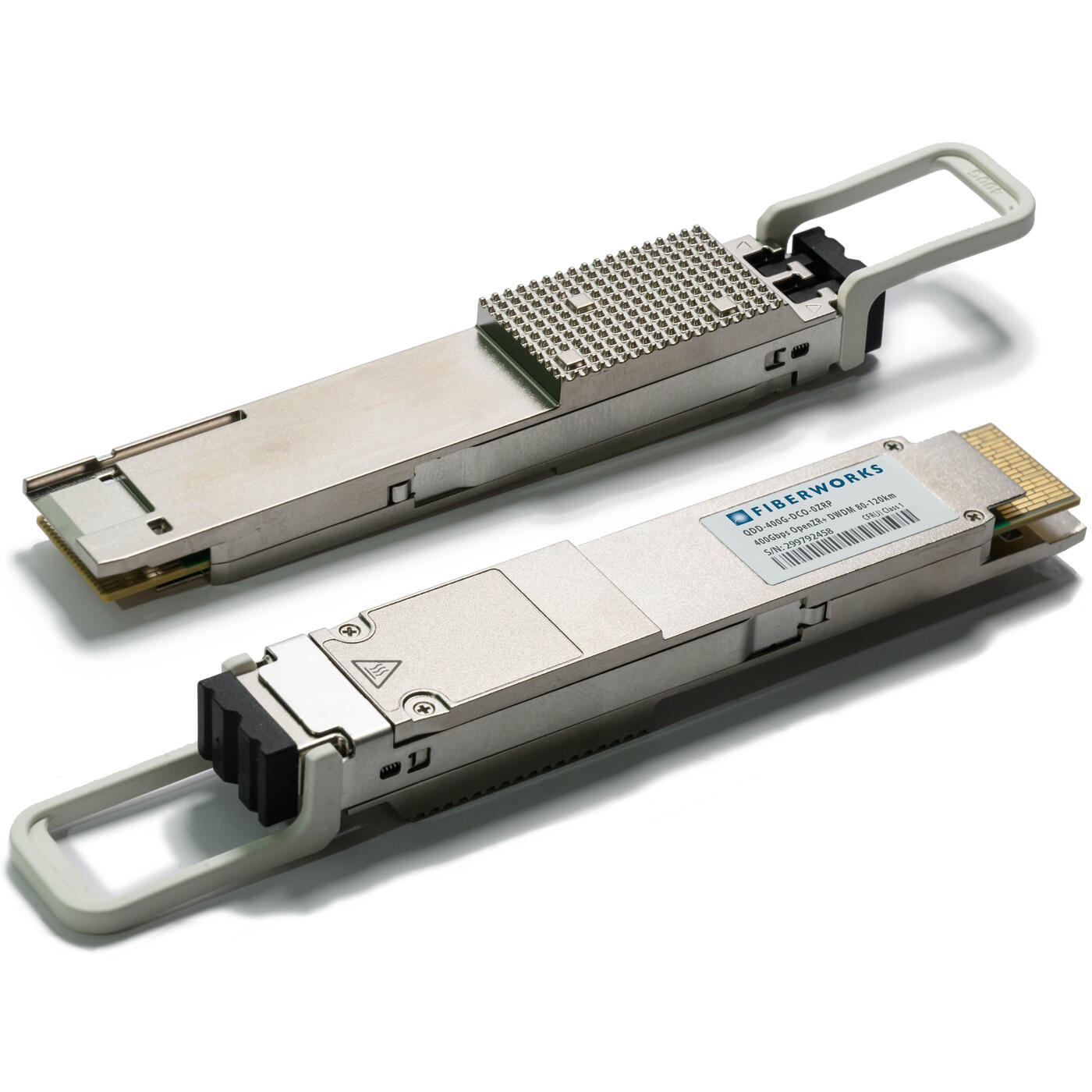

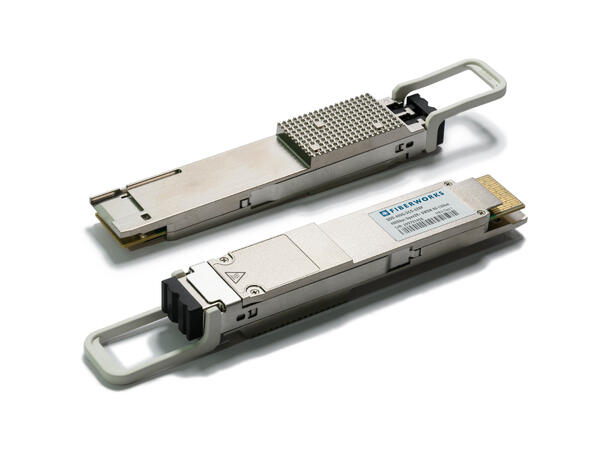

En 400G-transceiver med lang rekkevidde takket være koherent teknologi!
APPLICATIONS
• 400GBASE-ZR
• 100GBASE-ZR
• Data Center Interconnection
FEATURES
• Up to 80-120 km transmission on singlemode fiber
• Up to 500km transmission on singlemode fiber with EDFA
• Digital Coherent Optics (DCO)
• Hot-Pluggable QSFP-DD footprint
• Duplex LC UPC interface for fiber pair operation
• QSFP-DD MSA compatible
• CMIS 5.0 compatible
• ITU-T C-band 100 GHz spacing Tunable DWDM (48 channels)
• ITU-T C-band 75 GHz spacing Tunable DWDM (64 channels)
• Digital Diagnostic monitoring interface
• Operating Case Temperature: Standard: 0°C to 70°C
• Power dissipation < 21,5 W
