Fiberworks 4 ch. O-band DWDM Mux+Demux O-band 228.4-229.0 THz, 200GHz, LC/UPC

Fiberworks 4 ch. O-band DWDM Mux+Demux

O-band 228.4-229.0 THz, 200GHz, LC/UPC

Product nr: F-OMUX-4LB-LU

Description

Dette er en DWDM mux+demux for 4 kanaler i O-båndet. Den er spesielt tilpasset bruk sammen med 100G QSFP28 DWDM-transceivere.

FEATURES
- Dense WDM in the O-band with 200 GHz spacing

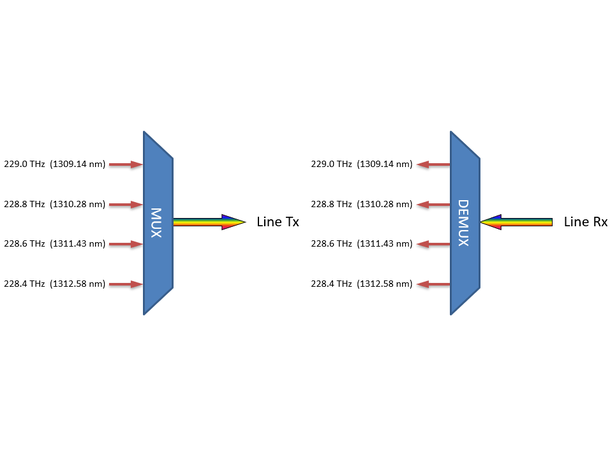

- 4 DWDM channels 228.4 - 229.0 THz (1309.14 - 1312.58 nm)

- All channels fit within a 1311 nm CWDM channel or any 1310 upgrade/extension port
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 25G, 100G etc.)
- Two modules fit in 1U in 19" rack

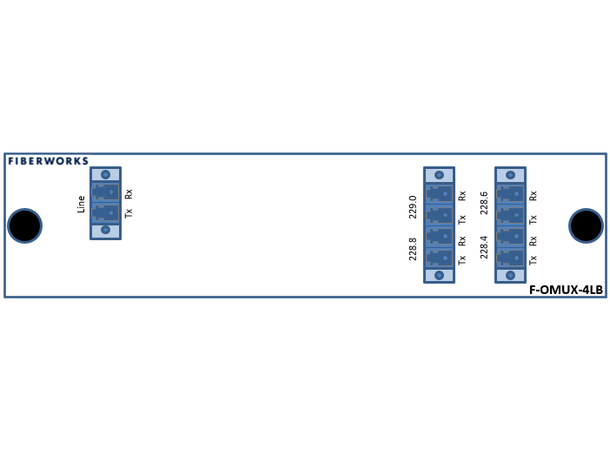

- LC/UPC connectors

Technical info

Product information

Form factor	Fiberworks
Fiber type	SM
Line fiber	Double (fiber pair, mux+demux)
Channel count	4
Add/drop Capabilities	No, mux/demux only
Connector type	Straight (UPC, PC)
Customs classification codes	ECCN: EAR99 HS: 8517.62.0090
