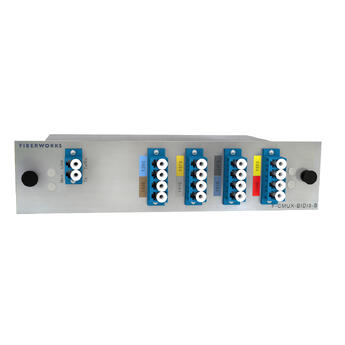

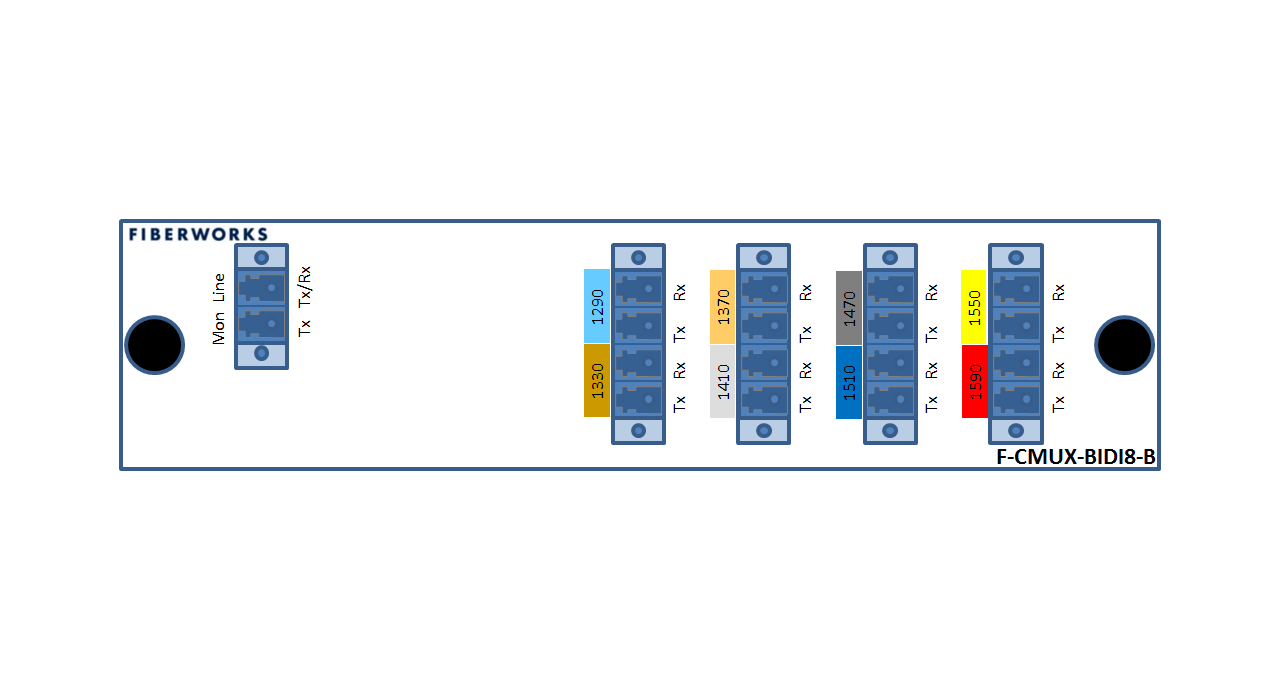

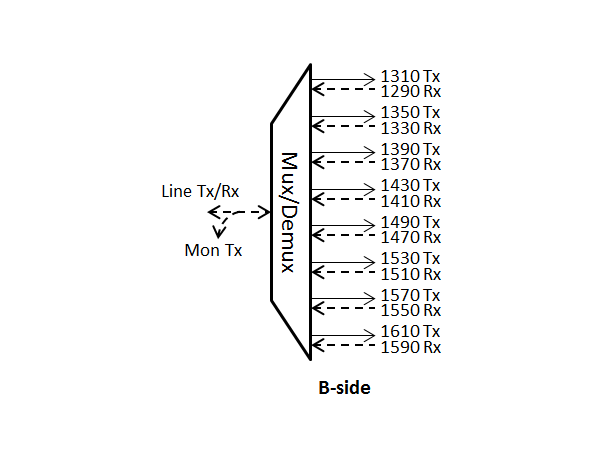

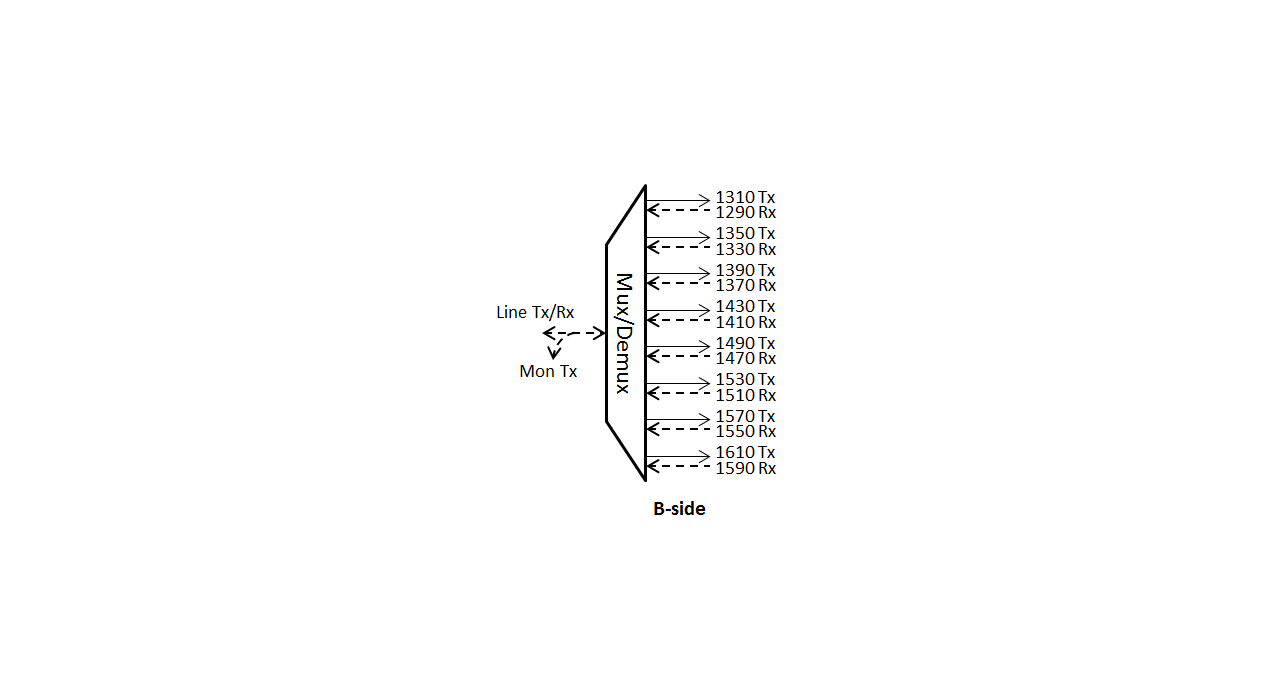

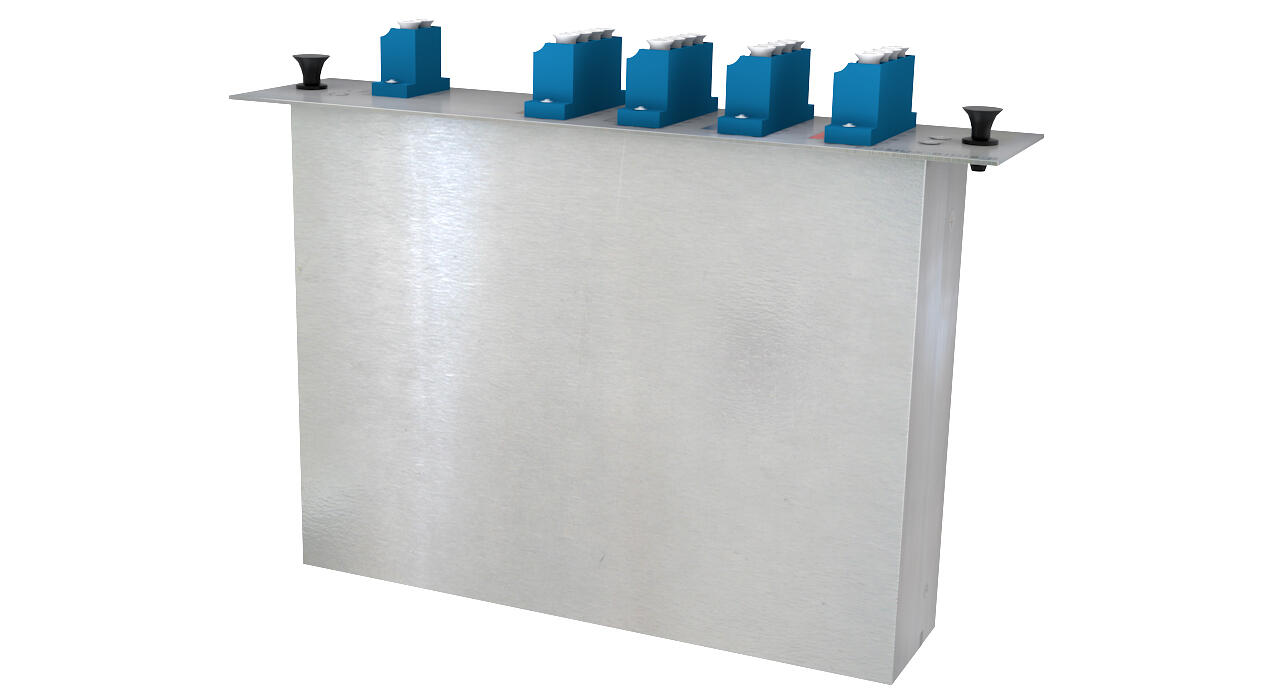

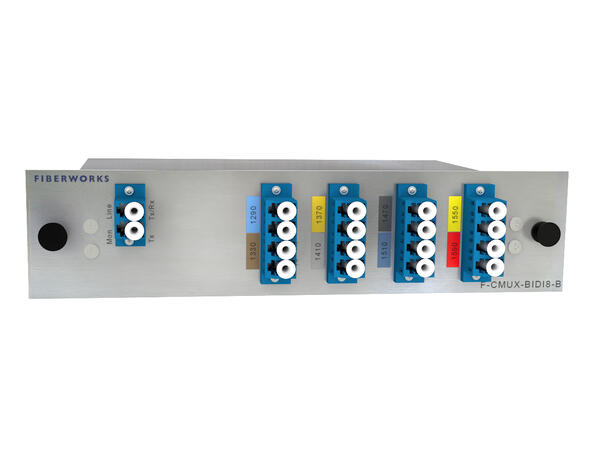

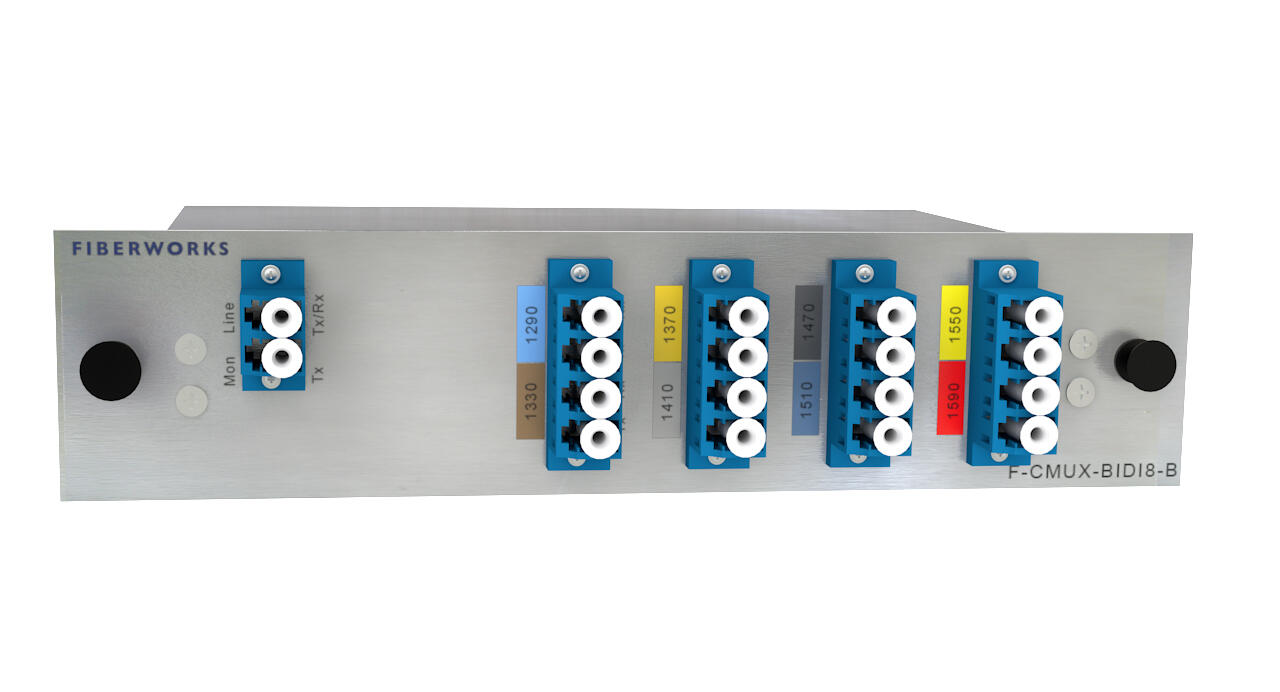

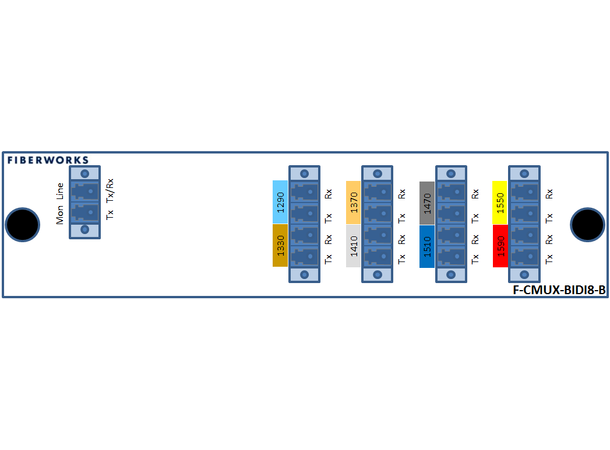

Fiberworks 8 ch. CWDM BiDi Mux/Demux

Single fiber, Mon. port, LC/UPC, B-side

Product nr: F-CMUX-BIDI8-B-MLU
Product
DescriptionTechnical infoAccessories
Description
FEATURES
•   Coarse WDM in compliance with ITU-T G.694.2
•   Standard 16-channel CWDM band 1290 – 1430 nm and 1470 – 1610 nm, 20 nm spacing
•   2% monitoring port for Tx
•   Based on thin film optics with epoxy free optical path
•   Protocol transparent (support 1G, 10G etc.)
•   Two modules fit in 1U in 19" rack
•   LC/UPC connectors


Technical info

Product information

Form factor Fiberworks
Fiber type SM
Line fiber Single (bidi, mux/demux)
Channel count 8
Add/drop Capabilities No, mux/demux only
Connector type Straight (UPC, PC)
Connector LC/UPC
Other features Monitor port
Customs classification codes
  • ECCN: EAR99
  • HS: 8517.62.0090
