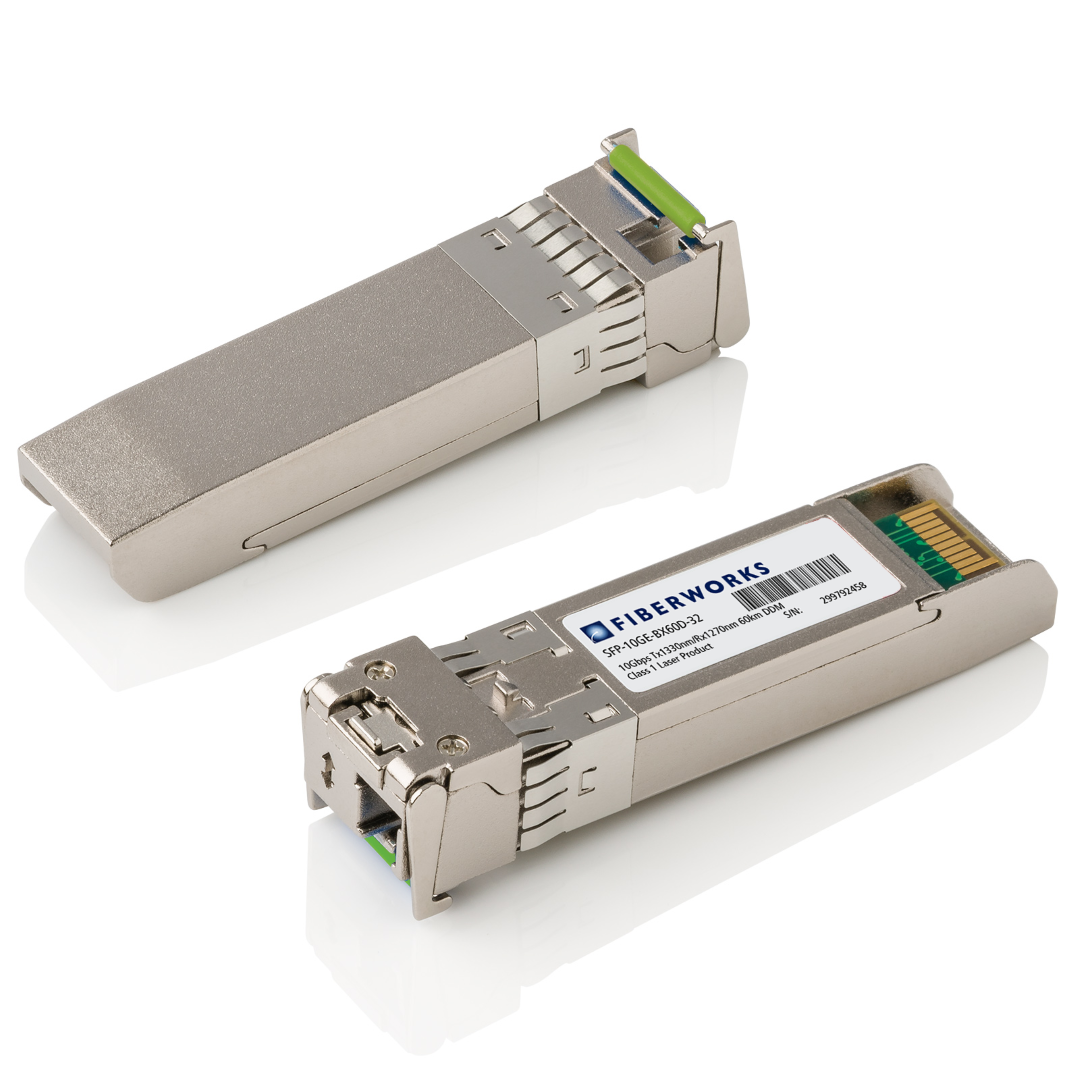

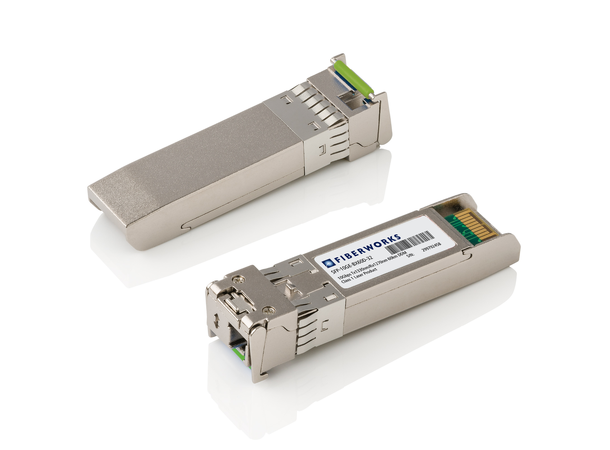

SFP+ BiDi, 10 GE, DDM, SM, 60km, I-Temp

Tx/Rx=1330/1270nm, 21dB, LC

Product nr: SFP10G-BX60-32-RGD

Product

Description

APPLICATIONS
• 10GBASE-BX at 10.3125 Gb/s
• 10GBASE-BX at 9.953 Gb/s

FEATURES
• Up to 10.7Gbps Data Links
• Single Mode LC Receptacle Bi-directional Transceiver
• Up to 60km transmission on SMF
• Power dissipation <1.0W
• 1330nm DFB laser and 1270nm APD receiver
• Digital Diagnostic monitoring
• Compliant with SFP+ MSA with simplex LC connector
• Industrial operating case temperature: -40~+85ºC

Technical info

Product information

Form factor	SFP+
Protocol / bit rate	10 Gigabit Ethernet 10G Fibre Channel SDH STM-64 OTN/G.709/G.sup43 OTU2(e) CPRI/OBSAI 1.228 - 3.072 Gbps CPRI/OBSAI 4.915 - 9.830 Gbps
Media type	Single fiber
Reach (dB)	21
Reach (km)	60
Wavelength (nm)	1270/1330
DDM	Yes
Connector	LC Simplex
Safety class	Laser Class 1
Operating temperature range	-40°C - +85°C (Industrial)
Temperature range, storage	-40°C - +85°C
Customs classification codes	ECCN: 5A991 HS: 8517.62.0090
