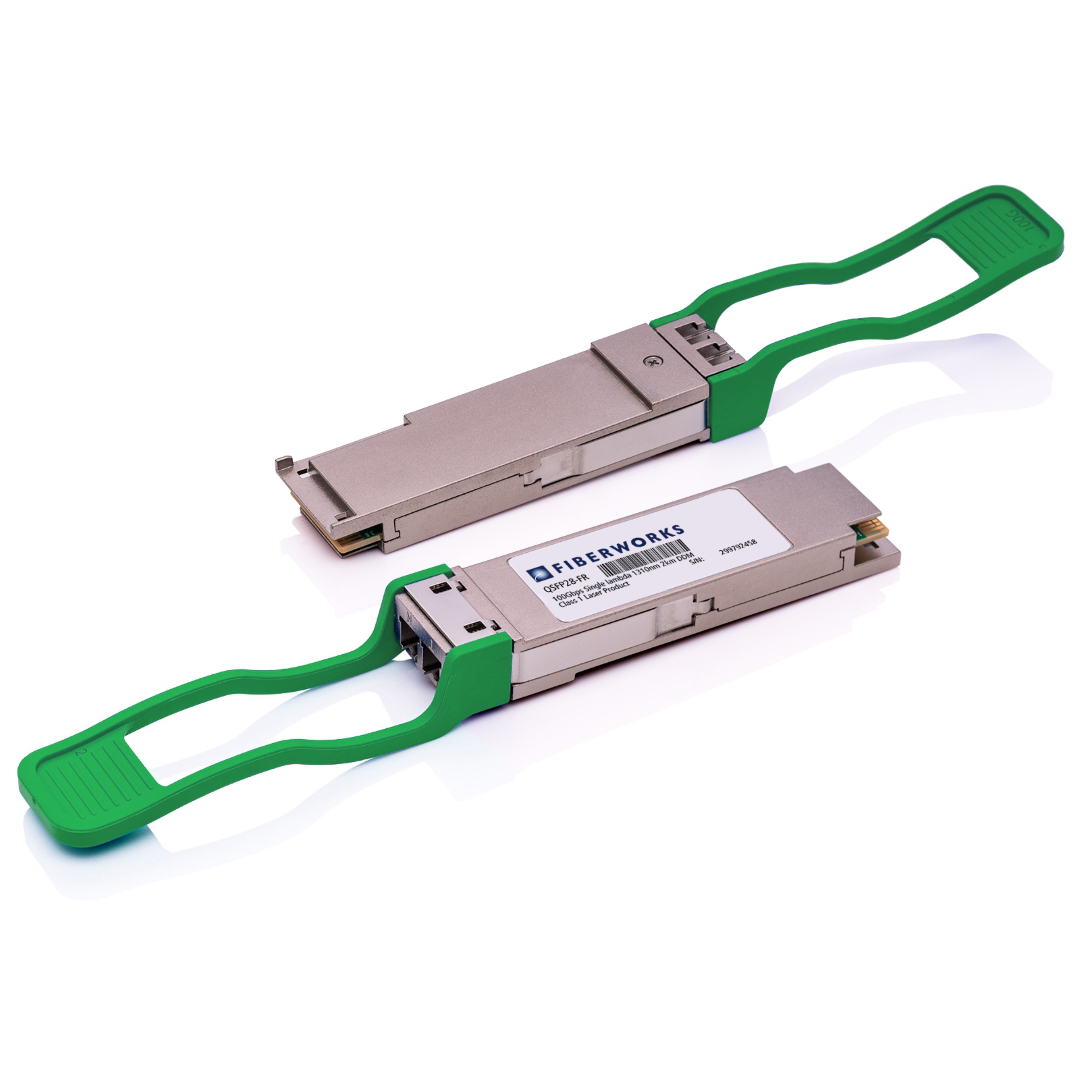

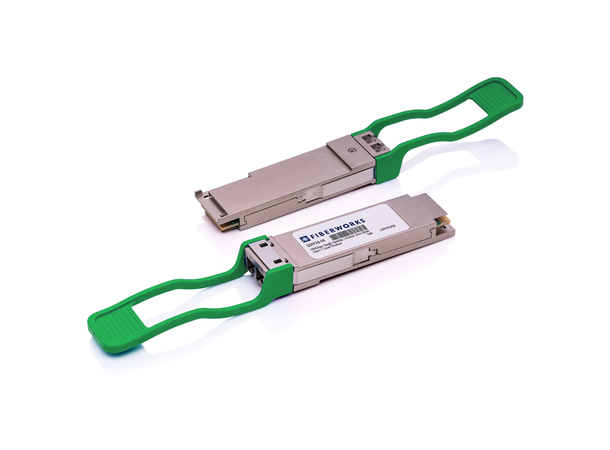

The QSFP56-FR4 transceiver is a 200 Gbit/s pluggable module for bi-directional serial optical data communications such as 200GBASE Ethernet. The transceiver operates with four PAM4 modulated 50Gbps signals at 1310 nm.
The module is fully compliant with QSFP56 related MSA standards and Digital Diagnostic functions are available through an I2C interface. QSFP28 Single Lambda complies with IEEE 802.3 and 200Gbase-FR4.
APPLICATIONS
• 200G Ethernet
• Data Center and LAN
FEATURES
• Compliant with 200Gbase-FR4
• 1310 nm
• Up to 212.5 Gbps Data rate
• Up to 2km transmission on SMF with FEC
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP56 MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 6.5 W
