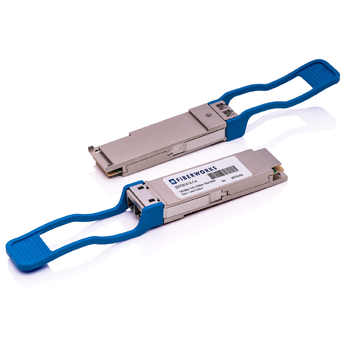

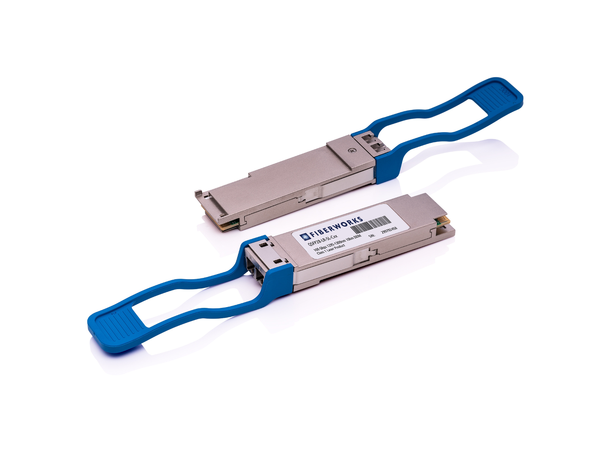

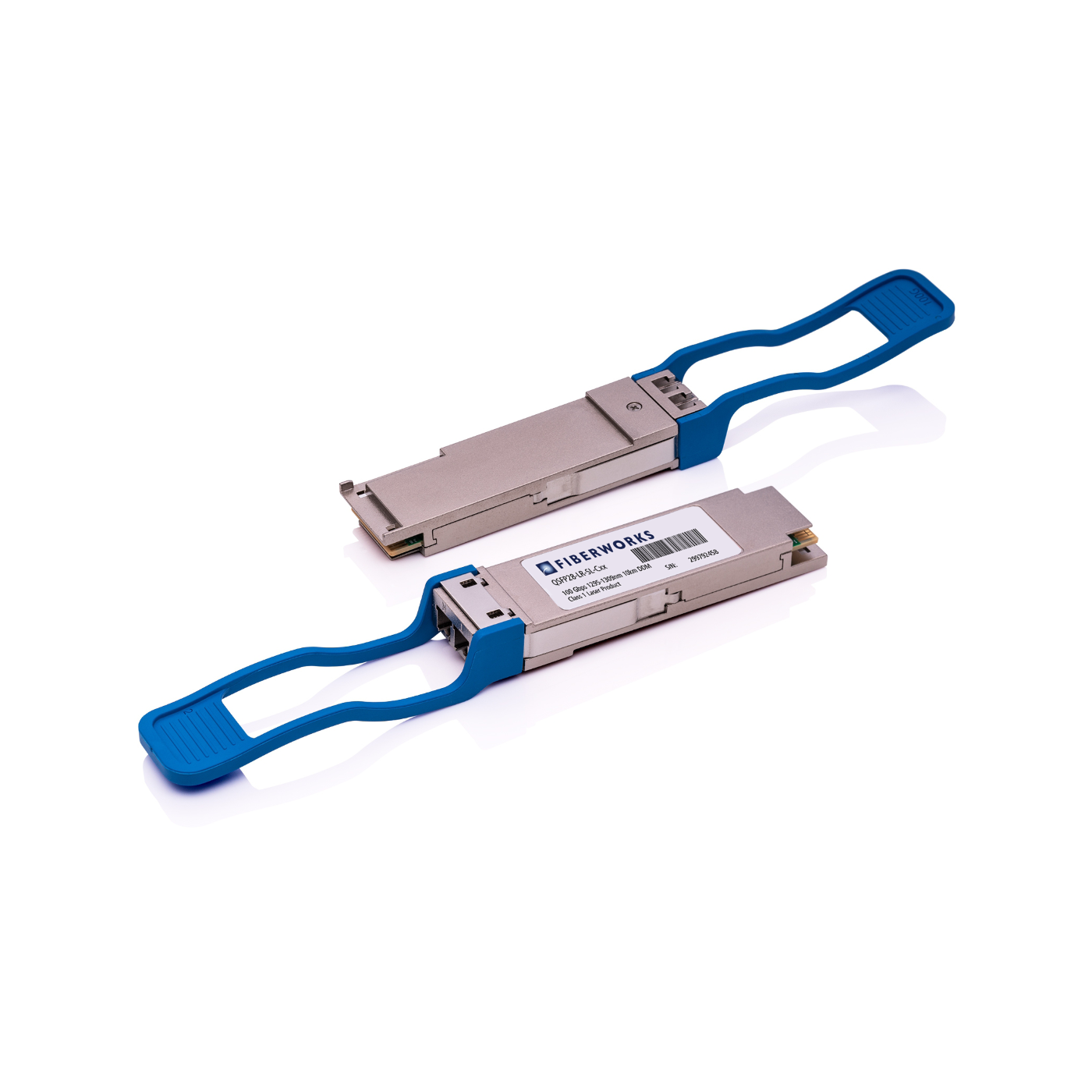

The QSFP28 Single Lambda transceiver is a 100 Gbit/s pluggable module for bi-directional serial optical data communications such as 100GBASE Ethernet. The transceiver operates with one PAM4 modulated signal and is available in four CWDM wavelengths of 1271 nm, 1291 nm, 1311 nm and 1331 nm.
The module is fully compliant with QSFP28 related MSA standards described in SFF-8665 and Digital Diagnostic functions are available through an I2C interface. QSFP28 Single Lambda complies with IEEE 802.3 and 100Gbase-LR4.
APPLICATIONS
• 100G Ethernet
• Data Center Interconnect
FEATURES
• Compliant with 100Gbase-LR4
• Single CWDM wavelength
• Up to 10km transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP28 MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 3.5 W
