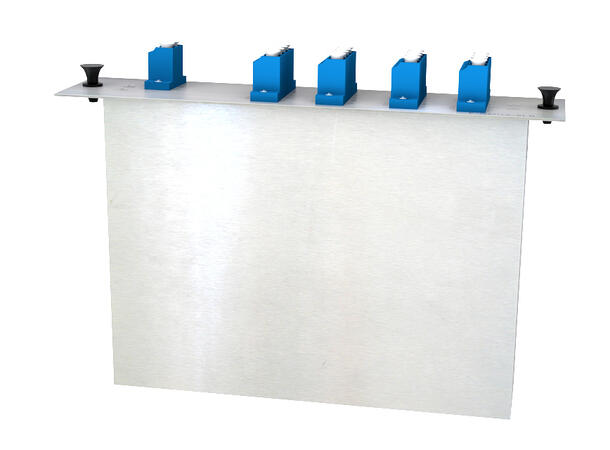

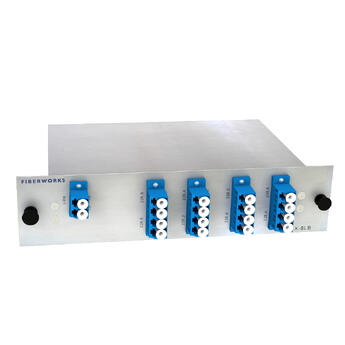

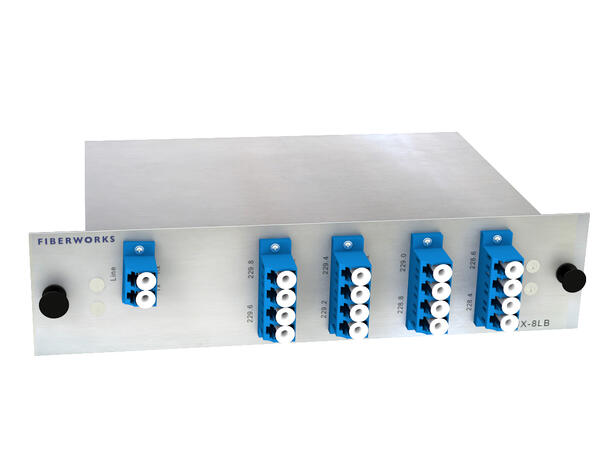

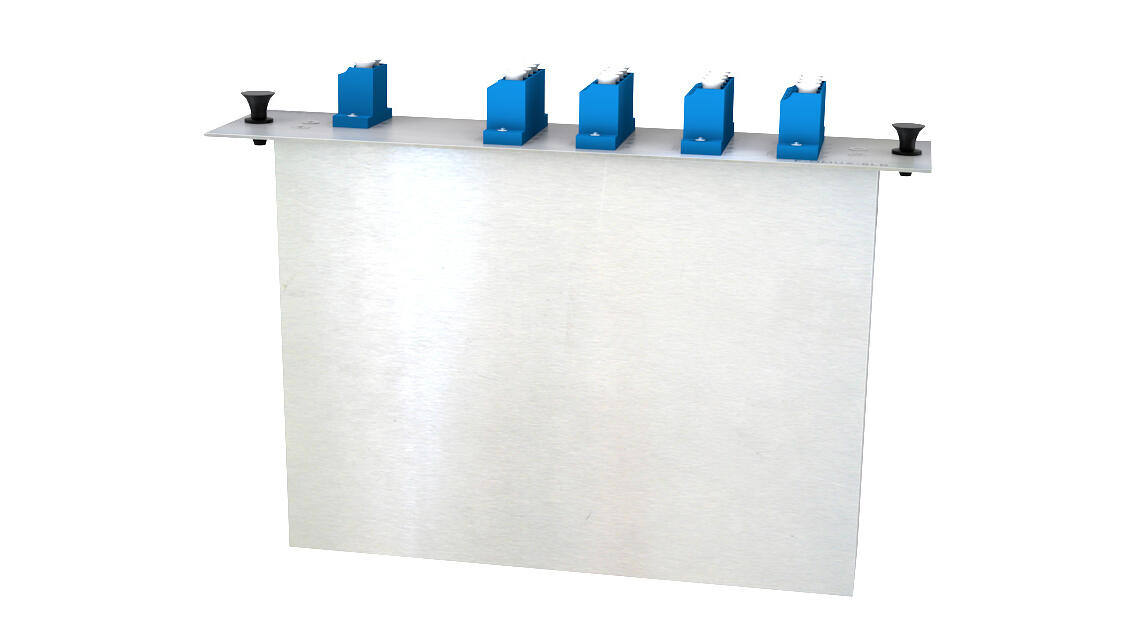

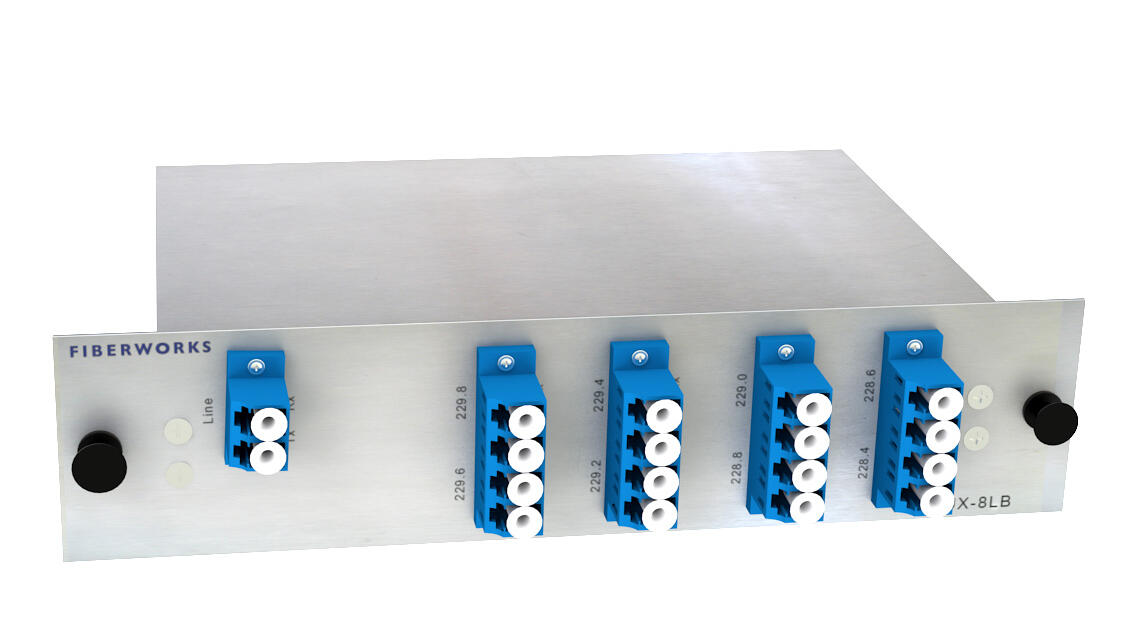

Dette er en DWDM mux+demux for 8 kanaler i O-båndet. Den er spesielt tilpasset bruk sammen med 100G QSFP28 DWDM-transceivere.
FEATURES
- Dense WDM in the O-band with 200 GHz spacing

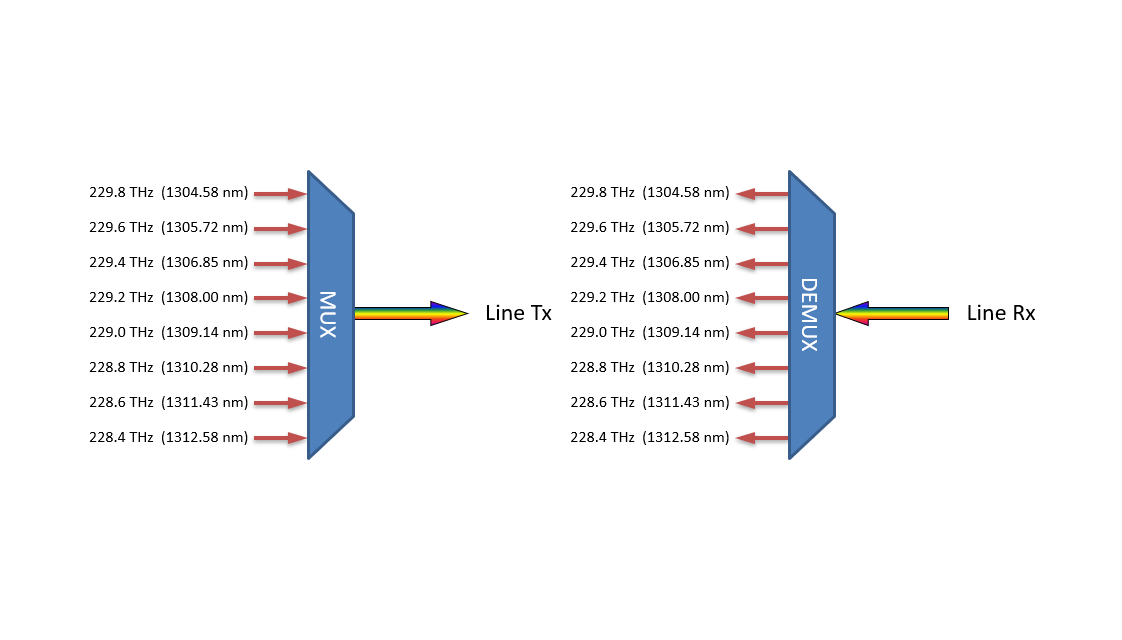

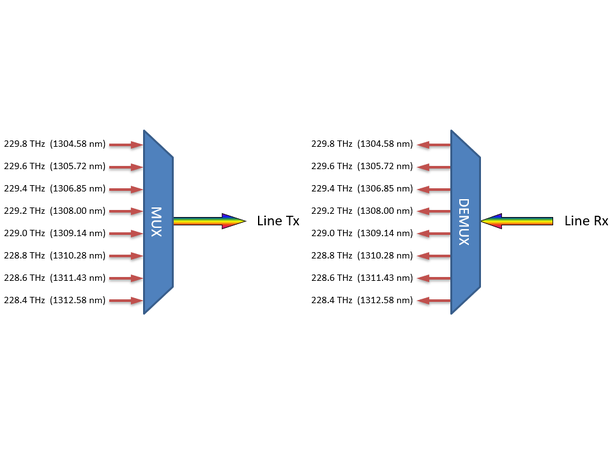

- 8 DWDM channels 228.4 - 229.8 THz (1304.58 - 1312.58 nm)
- All channels fit within a 1311 nm CWDM channel or any 1310 upgrade/extension port
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 25G, 100G etc.)
- Two modules fit in 1U in 19" rack

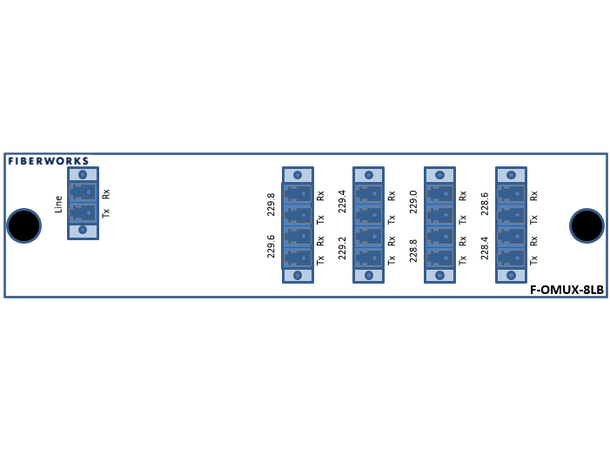

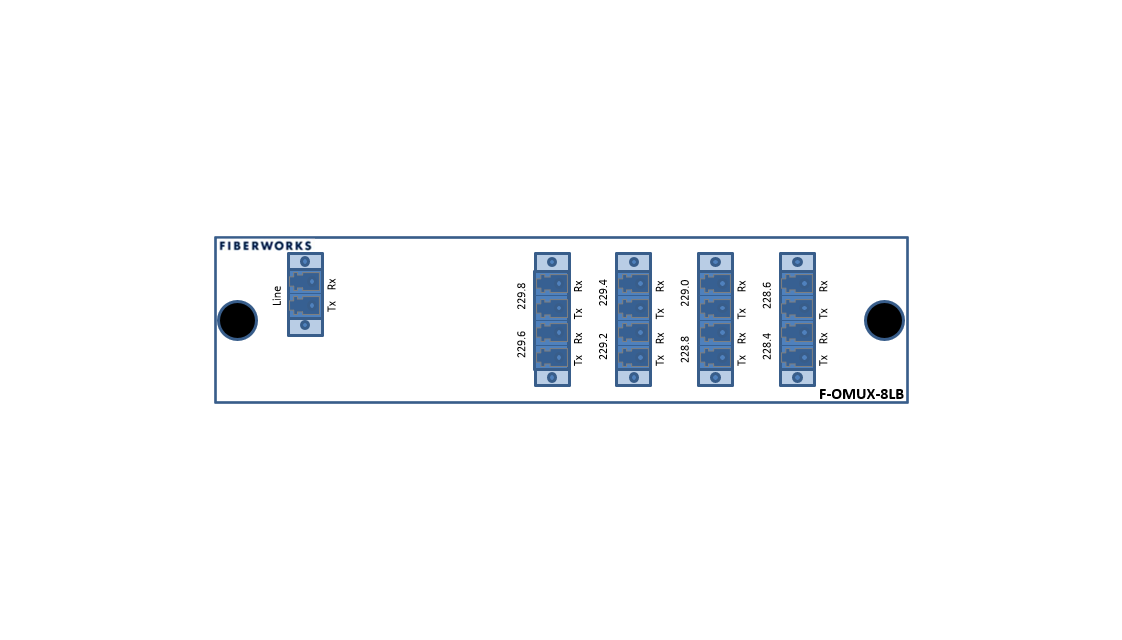

- LC/UPC connectors
