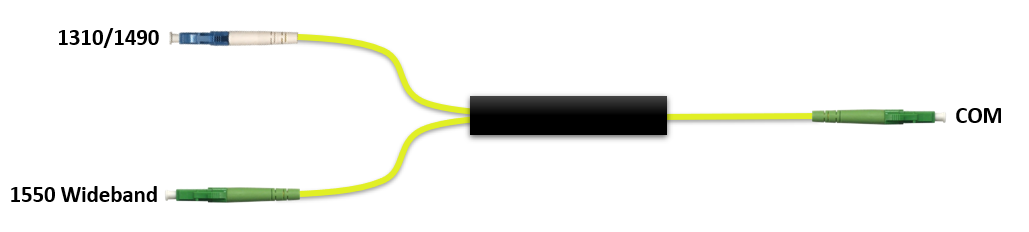

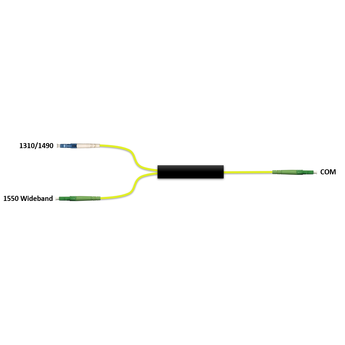

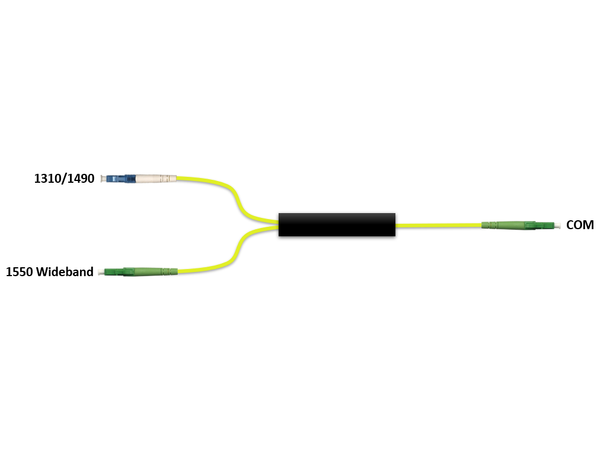

Fiberworks 1 ch. CWDM OADM 1550 nm wide Patchcord style, LC connectors UPC/APC

Fiberworks 1 ch. CWDM OADM 1550 nm wide

Patchcord style, LC connectors UPC/APC

Fiberworks AS FW

Product nr: F-COADM-1-IY-LC-15WB

Description

FEATURES

1550nm and 1310/1490nm splitter/combiner e.g. for RF overlay
ABS box 90x20x10 mm
2 mm patchcord style
LC/UPC connector on 1310/1490
LC/APC connectors on 1550WB and Com
Based on thin film optics with epoxy free optical path
Protocol transparent (support 1G, 10G etc.)

SPECIFICATIONS

Passband 1550WB port: 1540-1560 nm
Reflection band 1310/1490 port: 1260-1360 and 1480-1500 nm.
Insertion loss: < 0.8 dB

Technical info

Product information

Form factor	ABS module
Line fiber	Single (bidi, mux/demux)
Channel count	1
Add/drop Capabilities	Yes, "drop & continue"
Connector type	Straight (UPC, PC)
Connector	LC/APC LC/UPC
Customs classification codes	ECCN: EAR99 HS: 8517.62.0090
