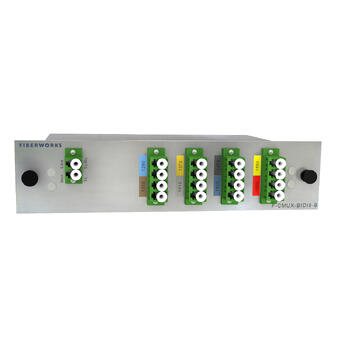

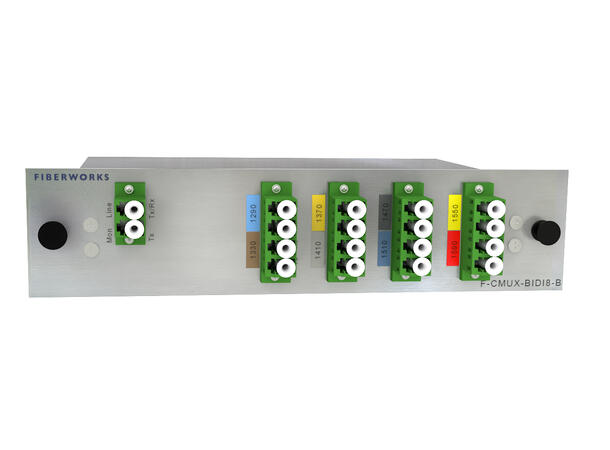

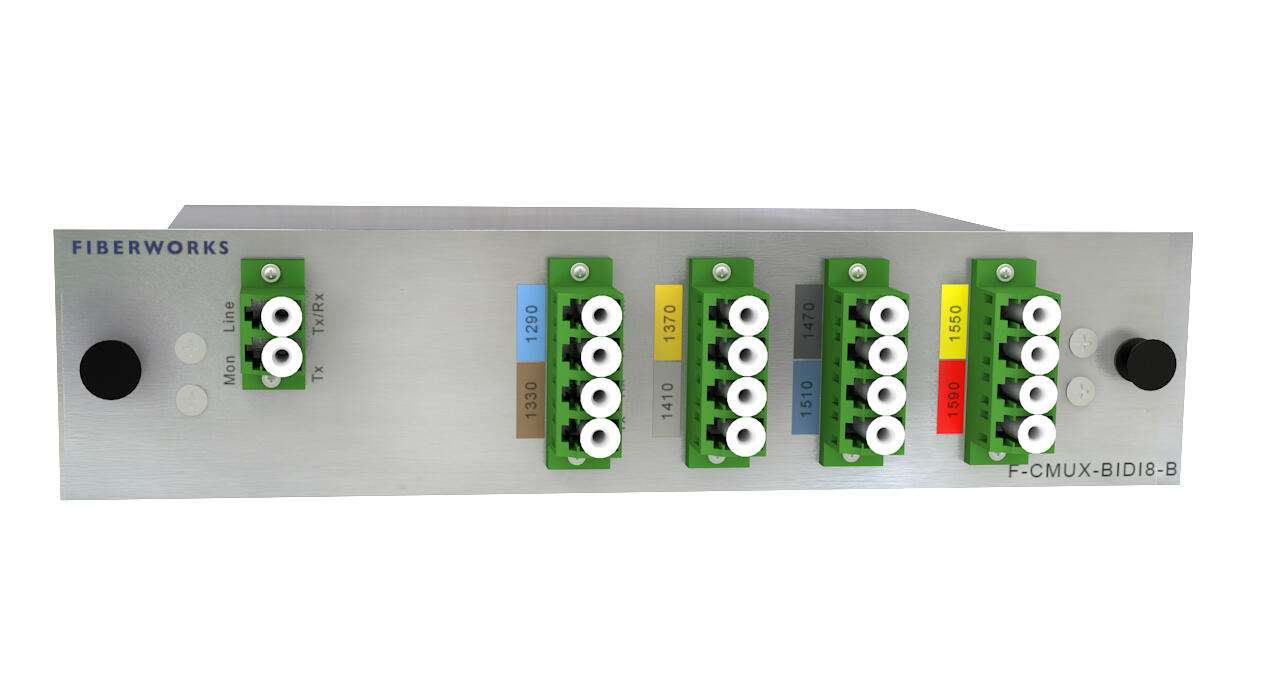

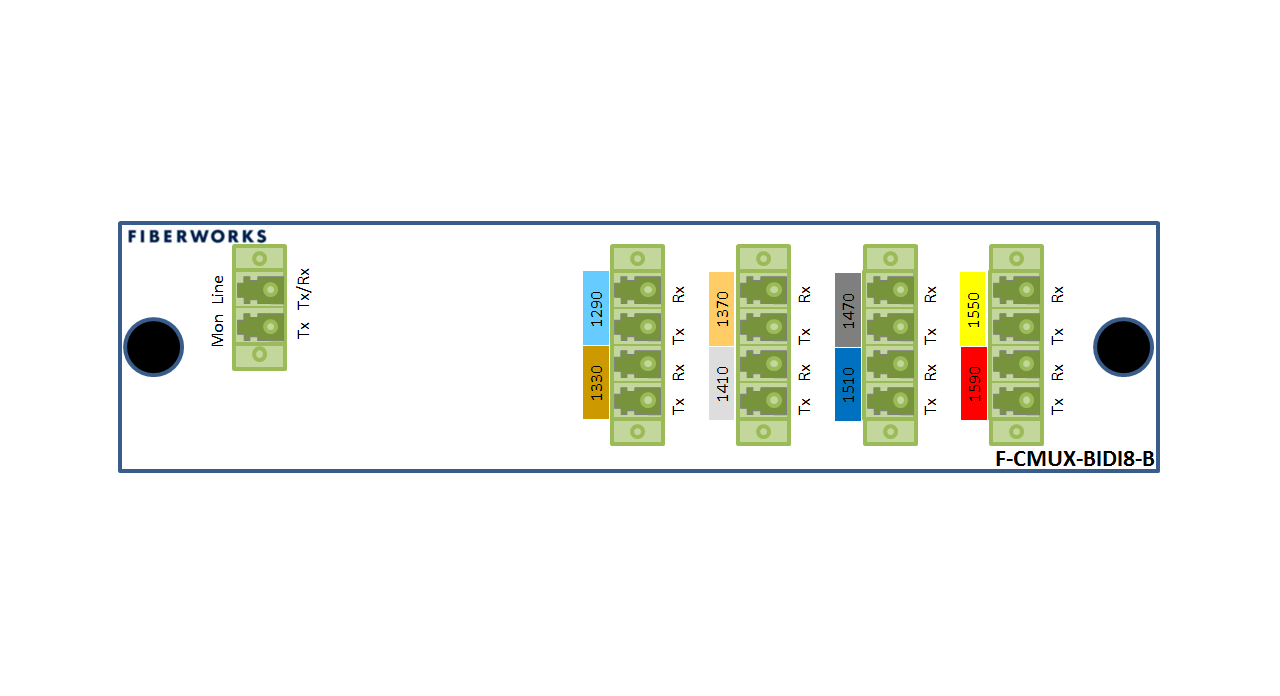

Fiberworks 8ch. CWDM BiDi CATV Mux/Demux

Single fiber, Mon. port, LC/APC, B-side

Product nr: F-CMUX-BIDI8-B-MLA
Product
DescriptionTechnical infoAccessories
Description
FEATURES
•  Coarse WDM in compliance with ITU-T G.694.2

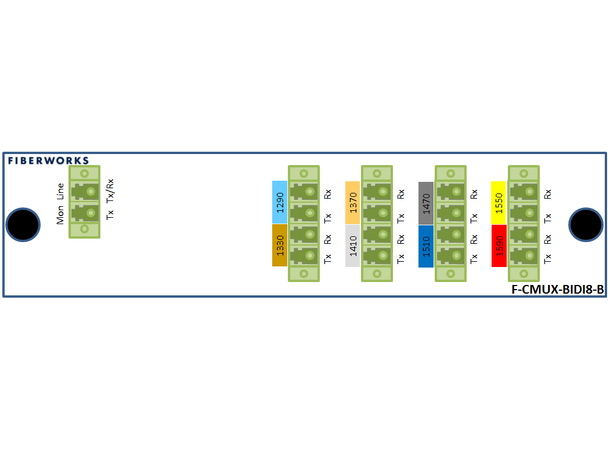

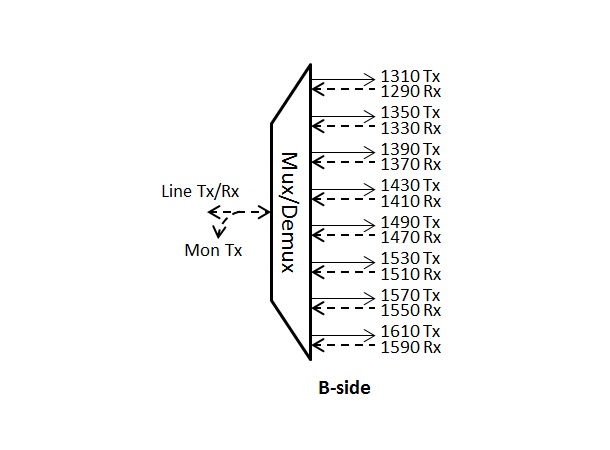

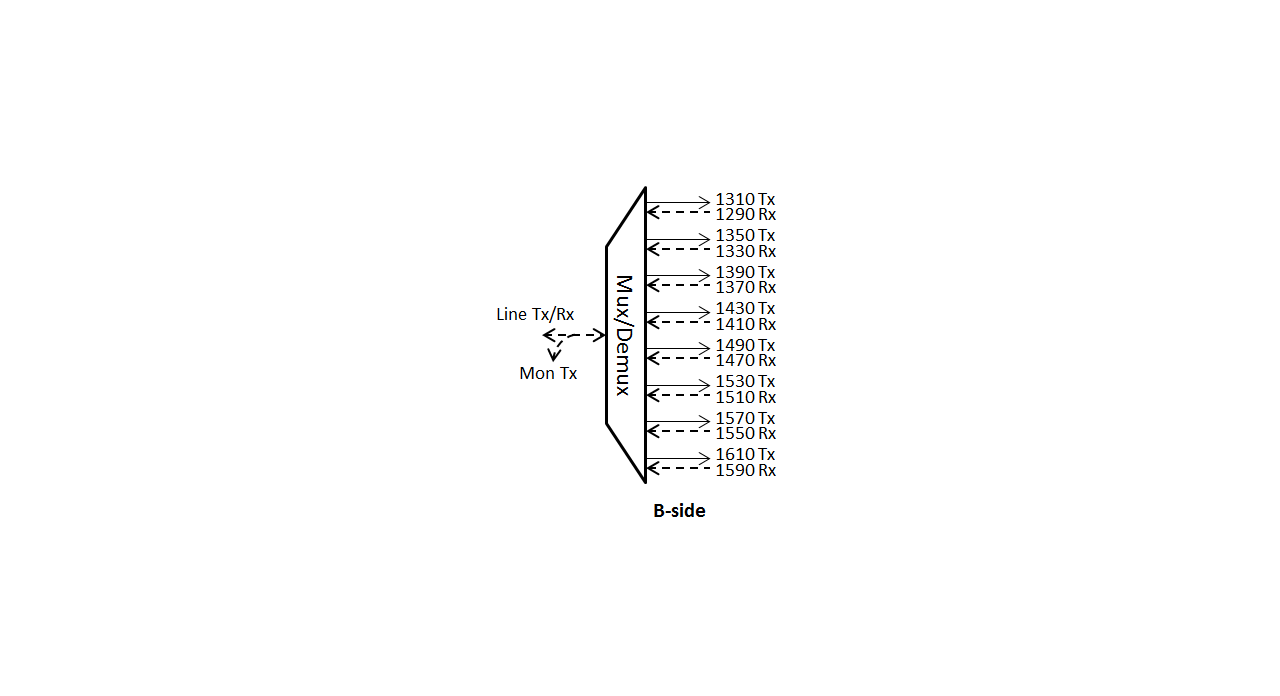

•  Standard 16-channel CWDM band 1290 – 1430 nm and 1470 – 1610 nm, 20 nm spacing
•  2% monitoring port for Tx
•  Based on thin film optics with epoxy free optical path
•  Protocol transparent (support 1G, 10G etc.)
•  Two modules fit in 1U in 19" rack
•  LC/APC connectors


Technical info

Product information

Form factor Fiberworks
Fiber type SM
Line fiber Single (bidi, mux/demux)
Channel count 8
Add/drop Capabilities No, mux/demux only
Connector type Angled (APC)
Connector LC/APC
Other features Monitor port
Customs classification codes
  • ECCN: EAR99
  • HS: 8517.62.0090
