Fiberworks 4ch. CWDM BiDi CATV Mux/Demux Single fiber, Mon. port, LC/APC, B-side

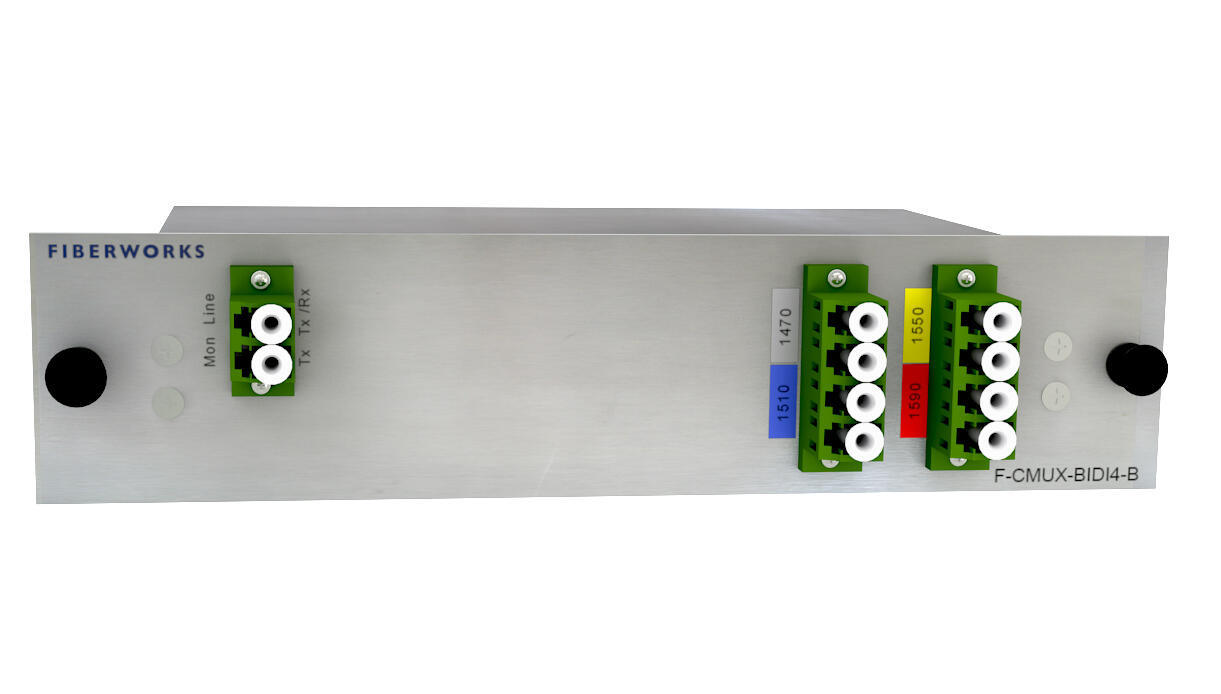

Fiberworks 4ch. CWDM BiDi CATV Mux/Demux

Single fiber, Mon. port, LC/APC, B-side

Product nr: F-CMUX-BIDI4-B-MLA

Product

Description

FEATURES
•  Coarse WDM in compliance with ITU-T G.694.2

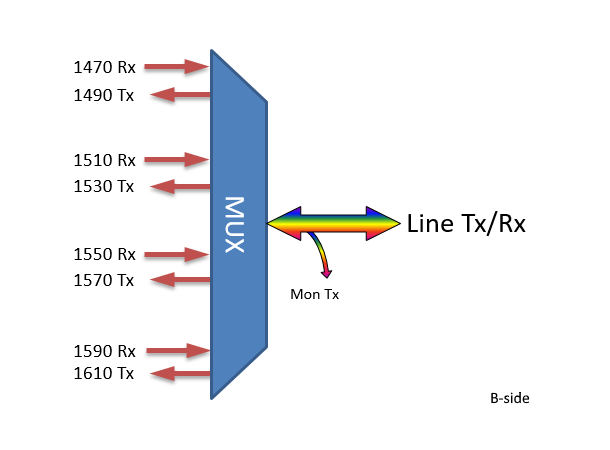

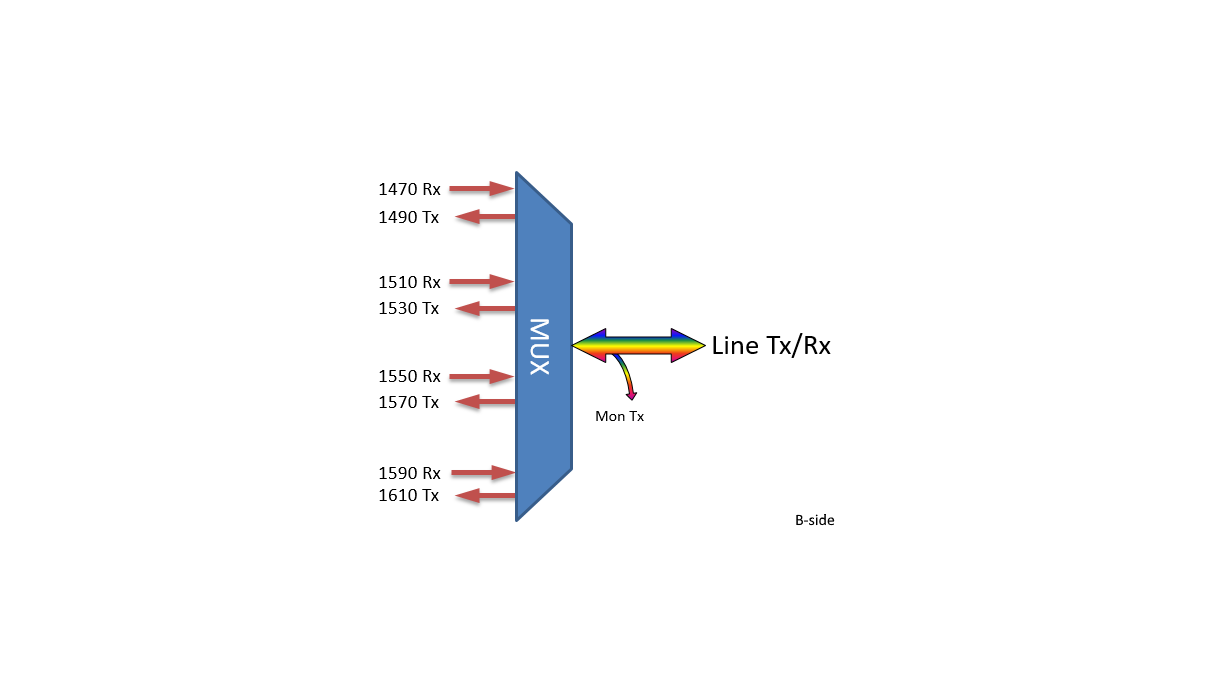

•  4 bi-directional channels using standard 8-channel CWDM band 1470 – 1610 nm, 20 nm spacing
•  2% monitoring port for Tx.
•  Based on thin film optics with epoxy free optical path
•  Protocol transparent (support 1G, 10G etc.)
•  Two modules fit in 1U in 19" rack
•  LC/APC connectors

Technical info

Product information

Form factor	Fiberworks
Fiber type	SM
Line fiber	Single (bidi, mux/demux)
Channel count	4
Add/drop Capabilities	No, mux/demux only
Connector type	Angled (APC)

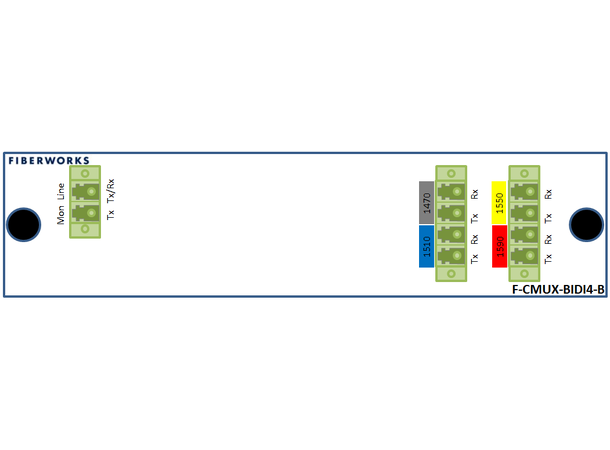

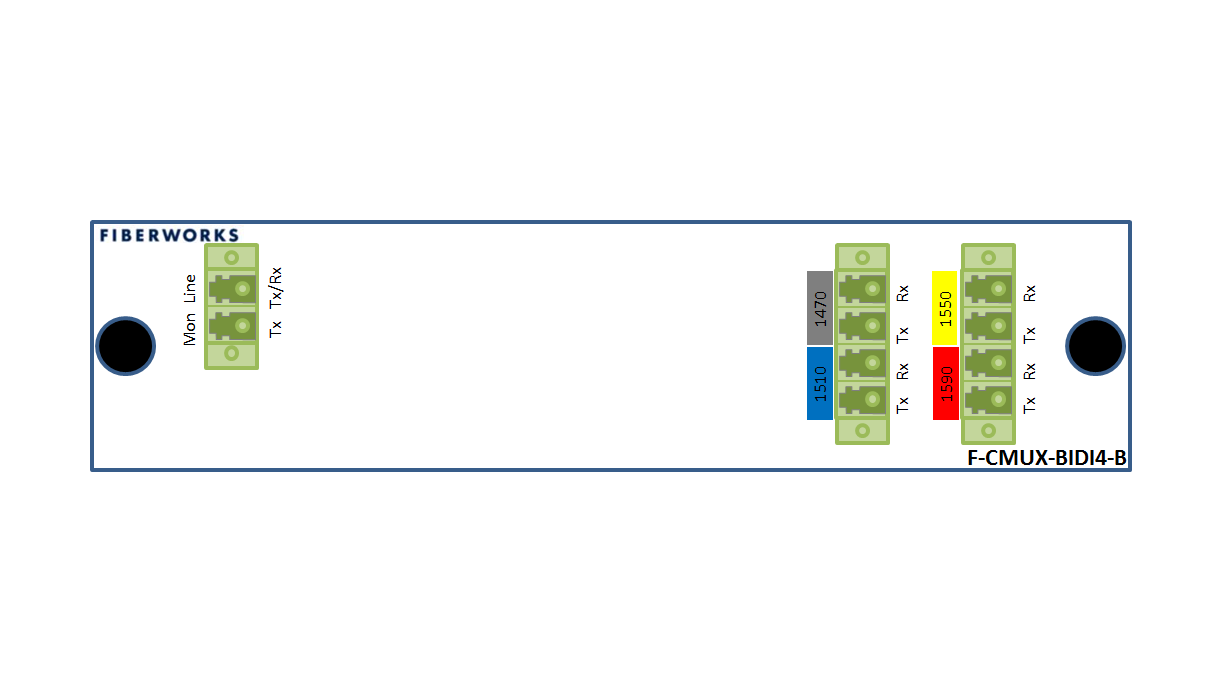

Connector	LC/APC
Other features	Monitor port
Customs classification codes	ECCN: EAR99 HS: 8517.62.0090
